Pizzato
SKU:FP 6R2-L10F1
FP 6R2-L10F1
FP 6R2-L10F1
Prezzo di listino
€30,27 EUR
Prezzo di listino
Prezzo scontato
€30,27 EUR
Spese di spedizione calcolate al check-out.
Availability: Ships in 2–3 weeks
Quantità
Impossibile caricare la disponibilità di ritiro

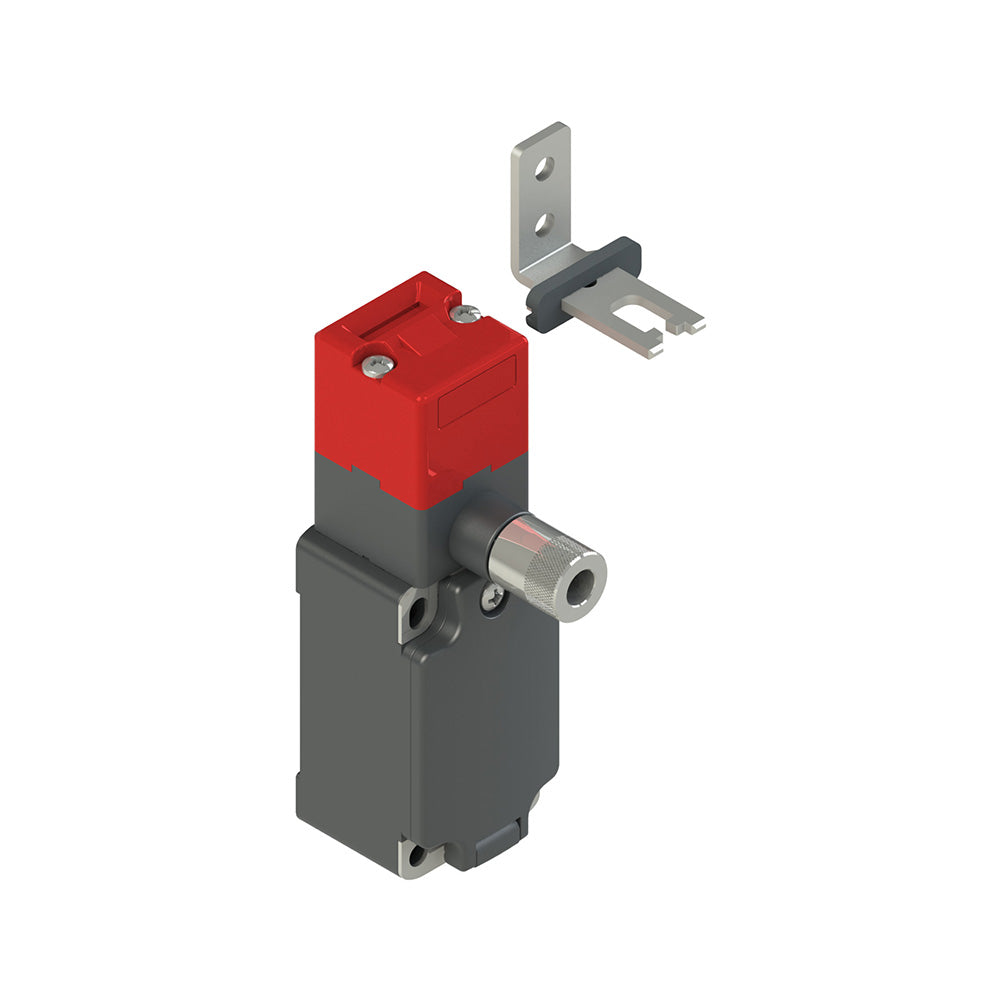

Safety switch with manual mechanical delay , Housing: Made of glass-reinforced technopolymer, one threaded PG 13,5 conduit entry (FP series), Contact block: 1NO+1NC slow action (B6), Head: With manual mechanical delay, long knob, 10 s, Actuator: Angled, Protection degree: IP67 according to EN 60529, Positive opening: Yes.
Technical specifications
| Manufacturer part number | FP 6R2-L10F1 |
|---|---|
| EAN | 8018851030871 |
| Minimum order quantity | 1 |
| Weight | 292 g |
| Customs tariff number | 85369095 |
| Product range | With mechanical delay |
| ETIM class | EC002593 |
Documentation
Technical documentation
Access the latest datasheets, certificates, manuals, CAD files and detailed technical information directly from the manufacturer.
Manufacturer:
Pizzato Elettrica
