Pizzato
SKU:FP 33R2-F
FP 33R2-F
FP 33R2-F
Availability: Ships in 2–3 weeks
Impossibile caricare la disponibilità di ritiro

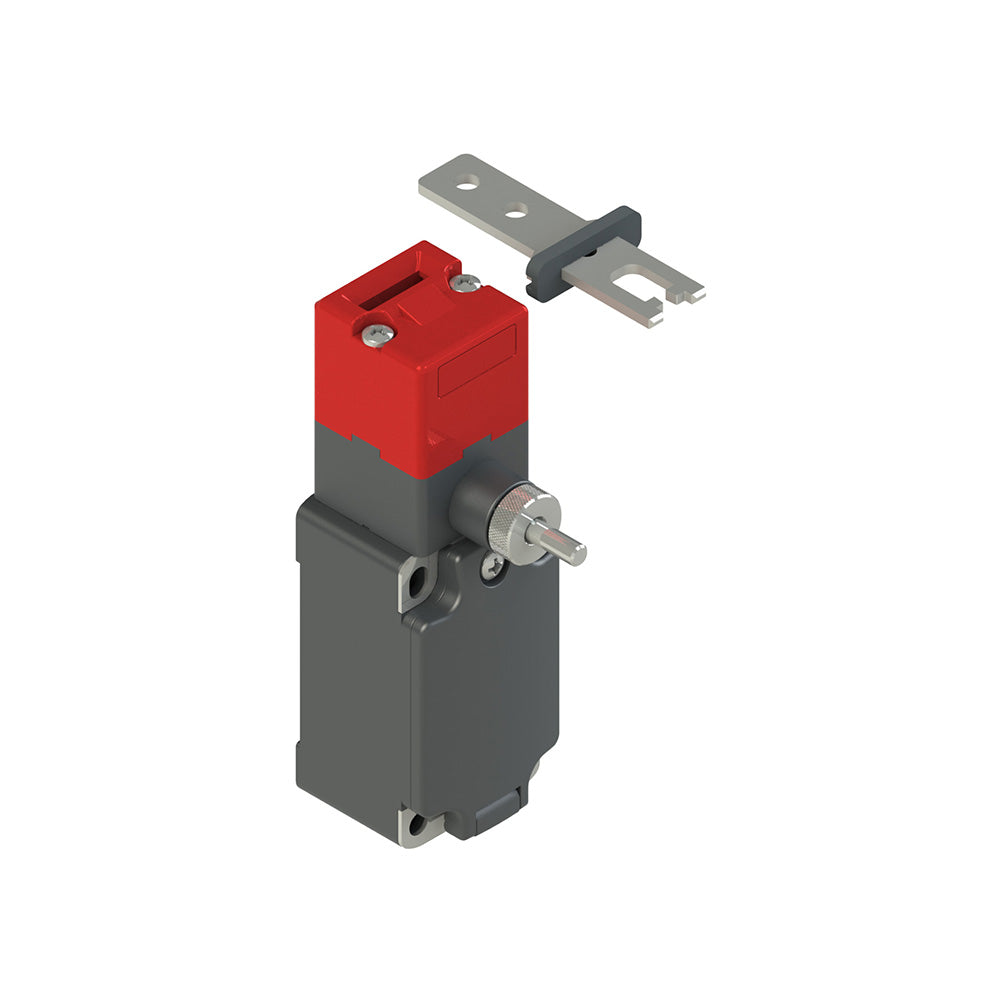

Safety switch with manual mechanical delay , Safety switch with manual mechanical delay and separate actuator, Housing: Made of glass-reinforced technopolymer, one threaded PG 13,5 conduit entry (FP series), Contact block: 1NO+1NC slow action (B33), Head: With manual mechanical delay, short knob, 20 s, Actuator: Straight, Protection degree: IP67 according to EN 60529, Positive opening: Yes.
Technical specifications
| Manufacturer part number | FP 33R2-F |
|---|---|
| EAN | 8018851029486 |
| Minimum order quantity | 1 |
| Weight | 0 g |
| Customs tariff number | 85369095 |
| Product range | With mechanical delay |
| ETIM class | EC002593 |
