Pizzato
SKU:FP 3099
FP 3099
FP 3099
Prezzo di listino
€37,22 EUR
Prezzo di listino
Prezzo scontato
€37,22 EUR
Spese di spedizione calcolate al check-out.
Availability: Ships in 2–3 weeks
Quantità
Impossibile caricare la disponibilità di ritiro

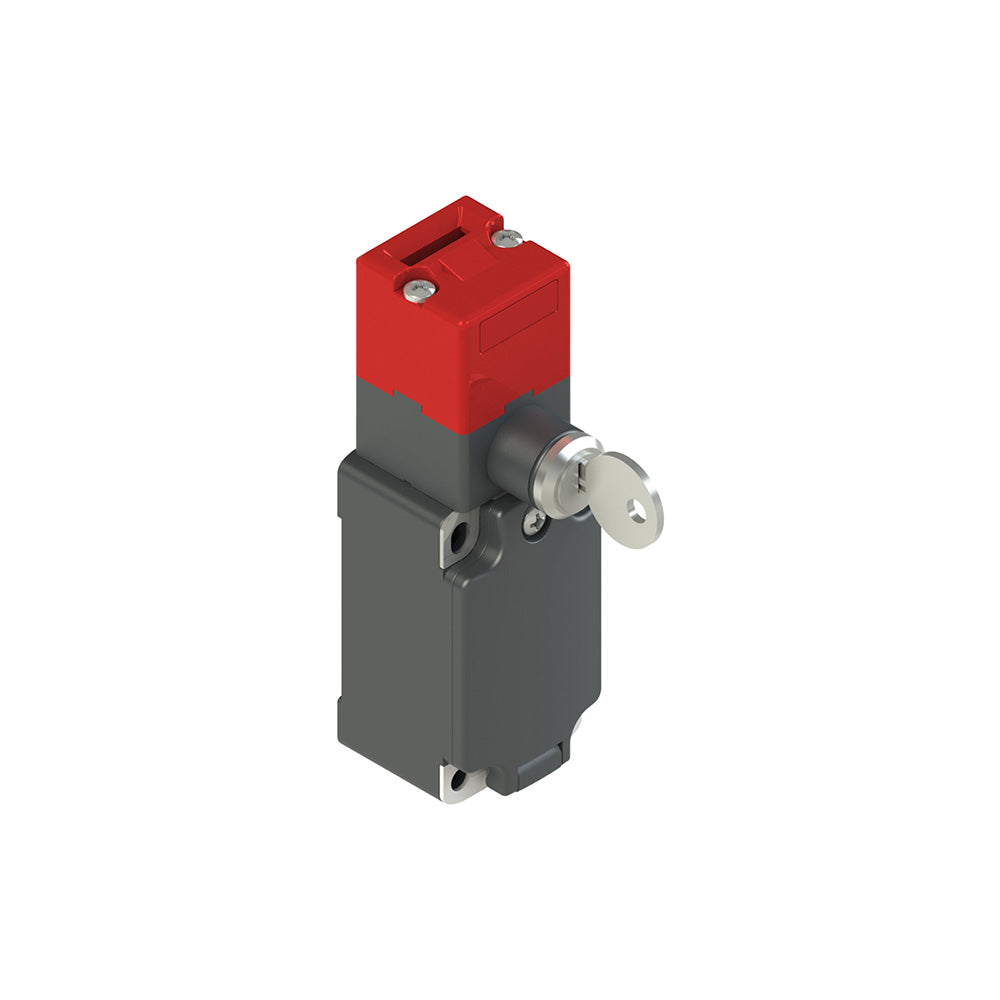

Safety switch with lock and separate actuator, Housing: Made of glass-reinforced technopolymer, one threaded PG 13,5 conduit entry (FP series), Contact block: 1NC (operated by lock) + 2NC (operated by actuator) (B30), Head: With lock and separate actuator, Protection degree: IP67 according to EN 60529, Positive opening: Yes.
Technical specifications
| Manufacturer part number | FP 3099 |
|---|---|
| EAN | 8018851065538 |
| Minimum order quantity | 1 |
| Weight | 265 g |
| Customs tariff number | 85369095 |
| Product range | With lock |
| ETIM class | EC002593 |
Documentation
Technical documentation
Access the latest datasheets, certificates, manuals, CAD files and detailed technical information directly from the manufacturer.
Manufacturer:
Pizzato Elettrica
Need help selecting components?
Talk to our team for expert guidance and product recommendations.
