Pizzato
SKU:FP 1835
FP 1835
FP 1835
Availability: Ships in 2–3 weeks
Impossibile caricare la disponibilità di ritiro

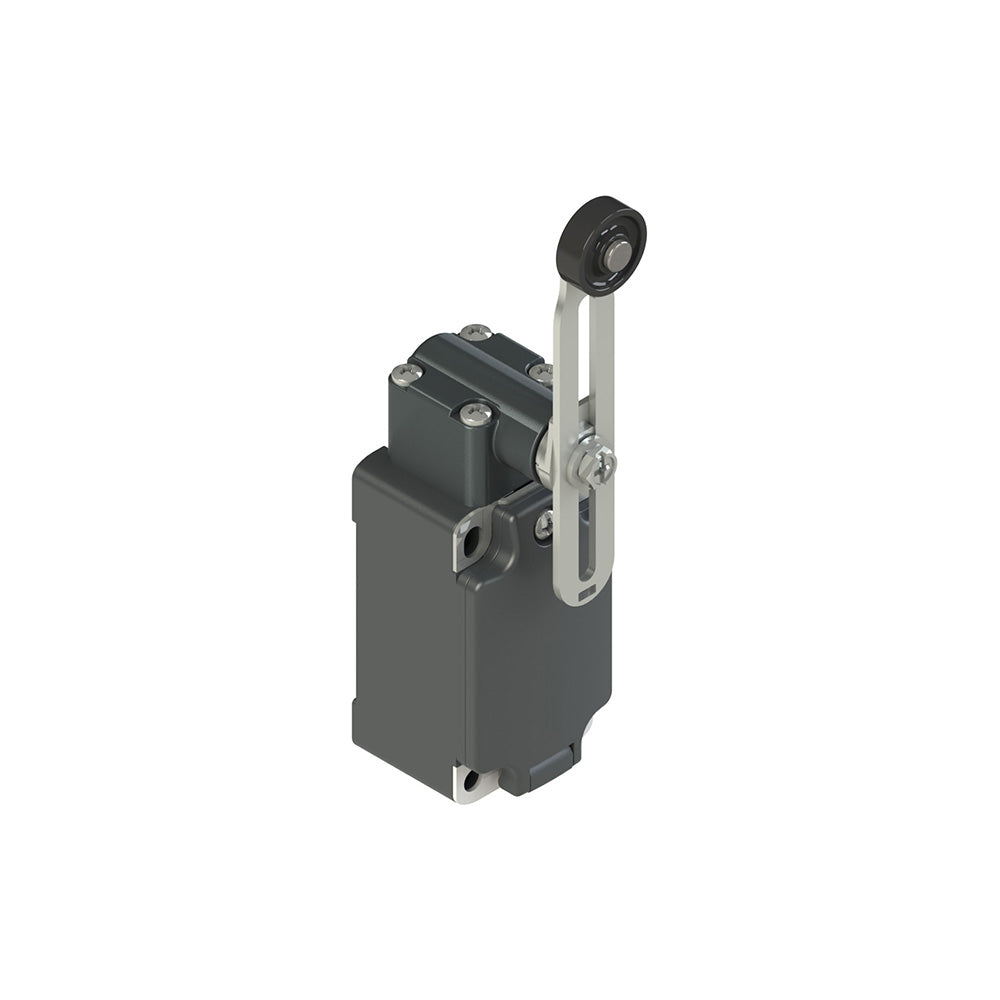

Position switch with adjustable roller lever, Housing: Made of glass-reinforced technopolymer, one threaded PG 13,5 conduit entry (FP series), Contact block: 1NO+1NC slow action, closer contacts (B18), Head: Regular head for rotating levers , Actuator: With adjustable technopolymer roller lever, 20 mm diameter, Protection degree: IP67 according to EN 60529, Positive opening: Yes (with lever adjusted to maximum length).
Technical specifications
| Manufacturer part number | FP 1835 |
|---|---|
| EAN | 8018851114472 |
| Minimum order quantity | 1 |
| Weight | 0 g |
| Customs tariff number | 85369095 |
| Product range | FP |
| ETIM class | EC000030 |
