Pizzato
SKU:FP 1536
FP 1536
FP 1536
Prezzo di listino
€17,07 EUR
Prezzo di listino
Prezzo scontato
€17,07 EUR
Spese di spedizione calcolate al check-out.
Availability: Ships in 2–3 weeks
Quantità
Impossibile caricare la disponibilità di ritiro

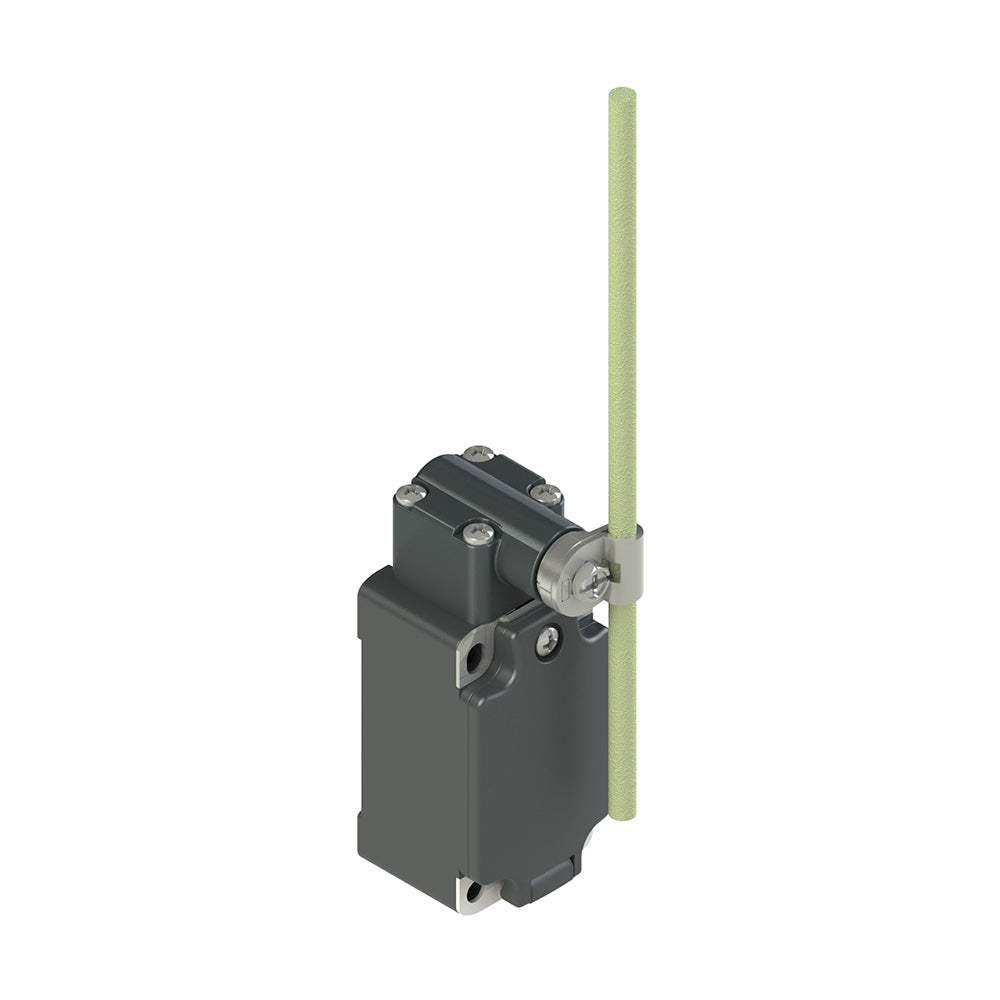

Position switch with adjustable glass-fibre rod lever, Housing: Made of glass-reinforced technopolymer, one threaded PG 13,5 conduit entry (FP series), Contact block: 2NO slow action, shifted contacts (B15), Head: Regular head for rotating levers , Actuator: With adjustable glass-fibre rod lever, 6 mm diameter, Protection degree: IP67 according to EN 60529.
Technical specifications
| Manufacturer part number | FP 1536 |
|---|---|
| EAN | 8018851026867 |
| Minimum order quantity | 1 |
| Weight | 0 g |
| Customs tariff number | 85369095 |
| Product range | FP |
| ETIM class | EC000030 |
Documentation
Technical documentation
Access the latest datasheets, certificates, manuals, CAD files and detailed technical information directly from the manufacturer.
Manufacturer:
Pizzato Elettrica
