Pizzato
SKU:FD 542
FD 542
FD 542
Prezzo di listino
€25,46 EUR
Prezzo di listino
Prezzo scontato
€25,46 EUR
Spese di spedizione calcolate al check-out.
Availability: Ships within 7 days
Quantità
Impossibile caricare la disponibilità di ritiro

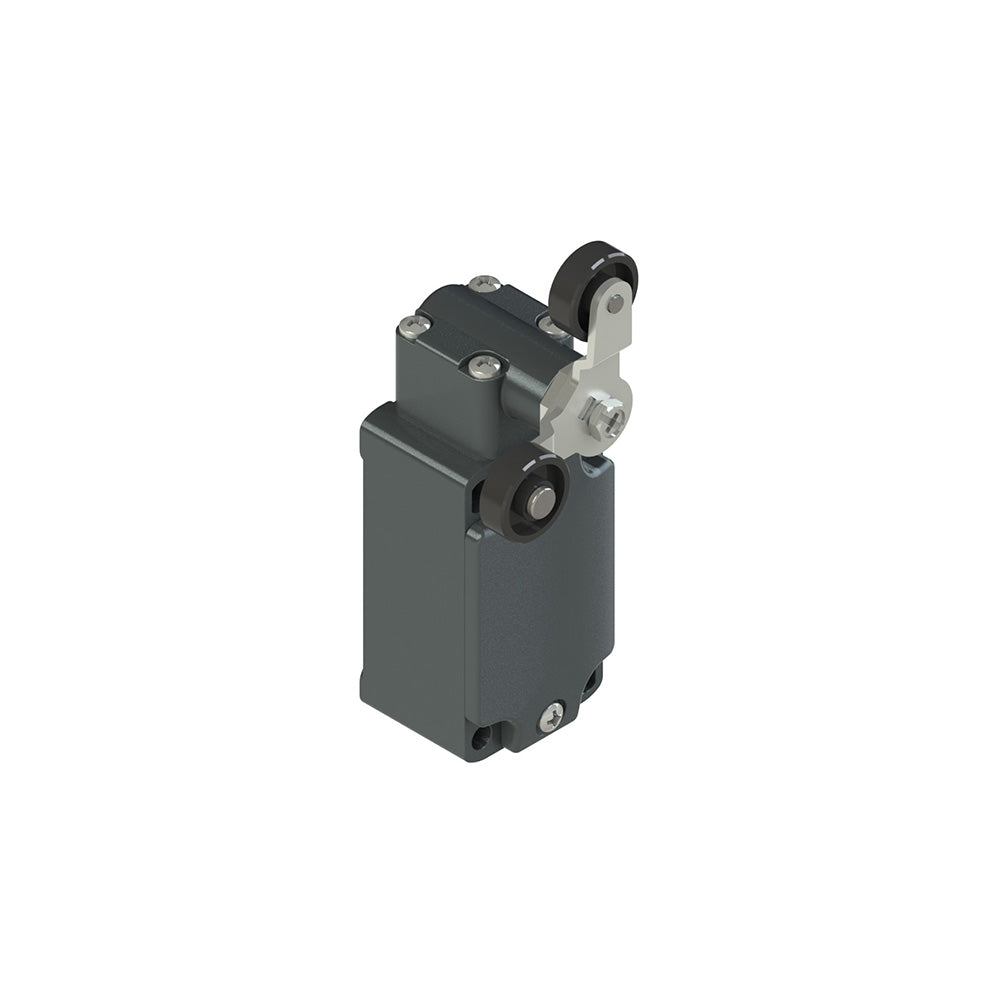

Position switch with bi-stable double-track lever, Housing: Metal housing, one threaded PG 13,5 conduit entry (FD series), Contact block: 1NO+1NC snap action (B5), Head: Bistable for rotating levers, Actuator: With double-track lever, Protection degree: IP67 according to EN 60529, Positive opening: Yes.
Technical specifications
| Manufacturer part number | FD 542 |
|---|---|
| EAN | 8018851009273 |
| Minimum order quantity | 1 |
| Weight | 416 g |
| Customs tariff number | 85369095 |
| Product range | FD |
| ETIM class | EC000030 |
Documentation
Technical documentation
Access the latest datasheets, certificates, manuals, CAD files and detailed technical information directly from the manufacturer.
Manufacturer:
Pizzato Elettrica
