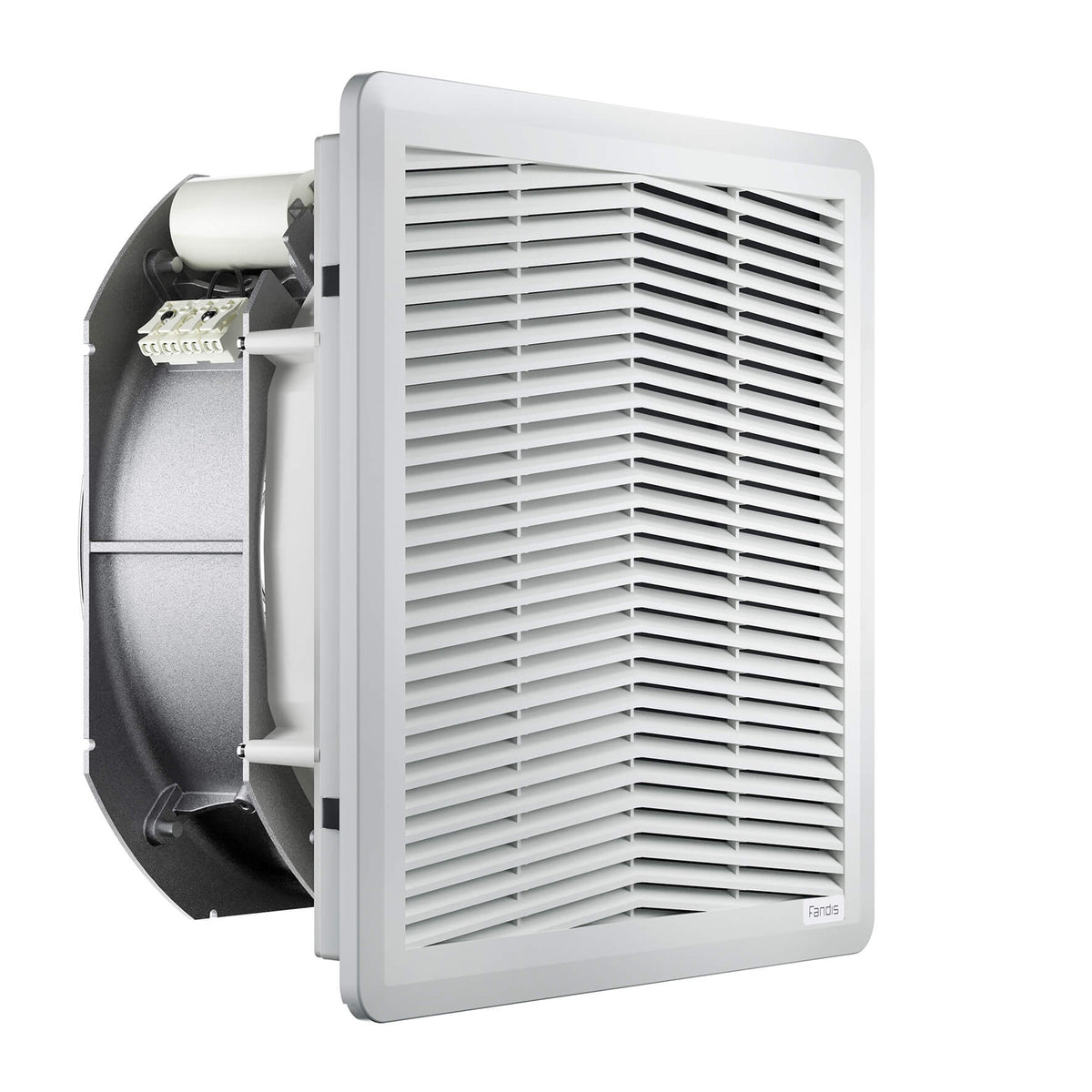

Fandis FF20GA115UER – FAN FILTER
Fandis FF20GA115UER – FAN FILTER
Price on request
Spese di spedizione calcolate al check-out.
FF series exhaust filter and filter fans represents a side-mounted cooling solution with filtered ambient air to maintain optimum ventilation inside the electrical cabinets. Screwless connection, fast tool-free mounting system with clip and maintenance friendliness are the main benefits. Available in a wide range of configurations for both indoor and outdoor use.
Technical specifications
| Manufacturer part number | FF20GA115UER |
|---|---|
| Approvals | CE; UKCA |
| Appliance Class | I |
| Frequency | 50/60 Hz |
| Motor Protection | Thermally Protected |
| Operating Voltage | 103.5-126.5 V a.c. |
| Rated Current | 1.1/1.7 A |
| Rated Power | 124/192 W |
| Rated Voltage | 115 V a.c. |
| IP Protection Degree | IP55 |
| Operating Temperature | -30÷60 °C |
| Storage Temperature | -30÷70 °C |
| Airflow Direction | Reverse |
| Casing Material | PC/ABS UL94 V-0 |
| Electrical Connection | Screwless Terminal Block |
| Fan Noise | 67.8/72 dB(A) |
| Filter Class | G3 EN 779 ISO coarse 55% ISO 16890 |
| Filter Material | thermo-linked progressive structure synthetic fibre |
| Life Expectancy | 62000/70000 h at 25 °C |
| RAL Number | 7035 |
| Spare Parts Filter Media | M20FPF-EU3RM |
| Wires Section | 0.75-2.5 mm² 20-14 AWG |
| Bearing | Ball Bearing |
| Mounting Wall Thickness | 1.3-3.7 mm |
| Airflow with Exhaust Filter | 510/545 m³/h |
| Max Airflow | 765/845 m³/h |
| Max Static Pressure | 280/260 Pa |
