Fandis
SKU:FF15D24NN53

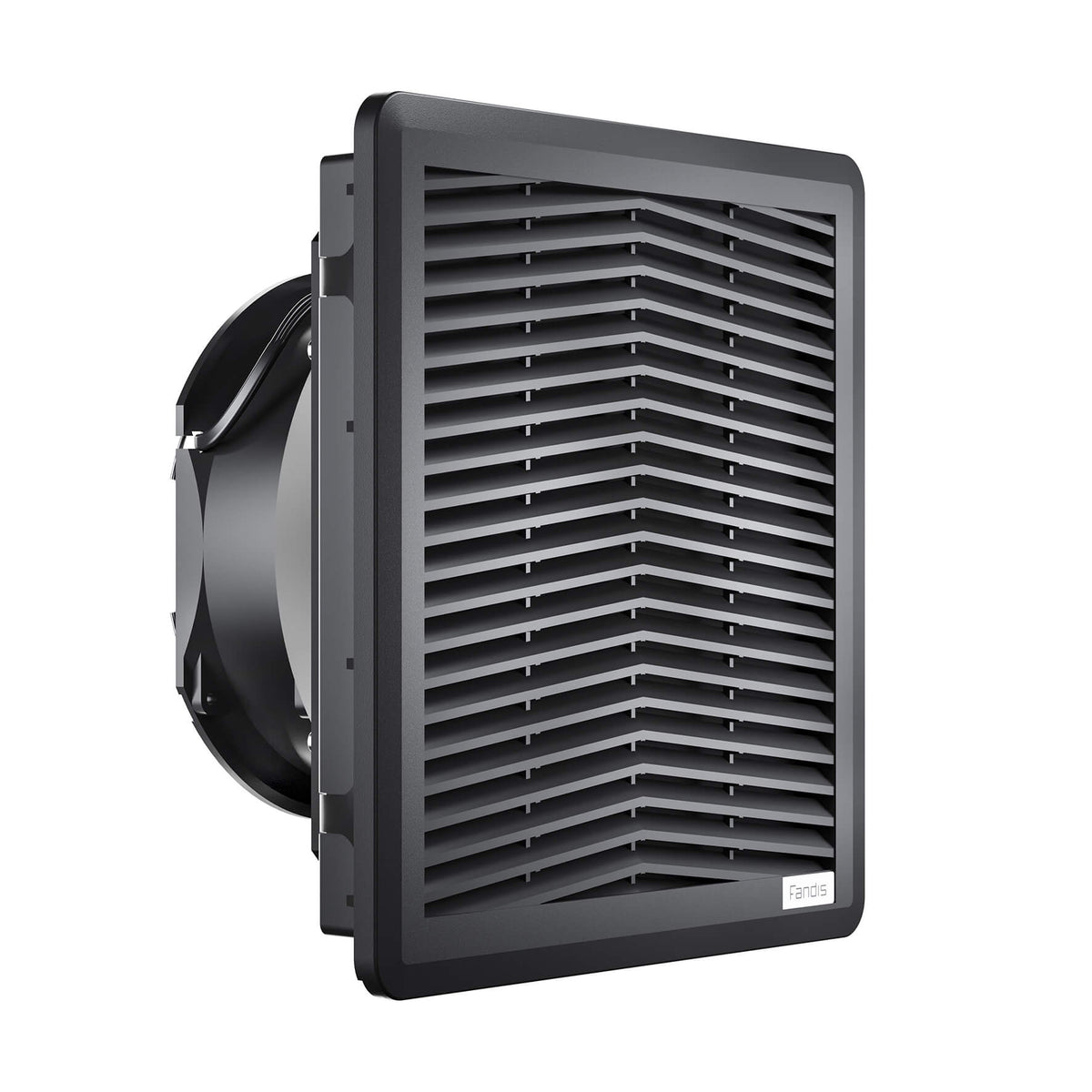

Fandis FF15D24NN53 – FAN FILTER 24Vd.c. RAL 9005 IP55
Fandis FF15D24NN53 – FAN FILTER 24Vd.c. RAL 9005 IP55
Price on request
Spese di spedizione calcolate al check-out.
FF series exhaust filter and filter fans represents a side-mounted cooling solution with filtered ambient air to maintain optimum ventilation inside the electrical cabinets. Screwless connection, fast tool-free mounting system with clip and maintenance friendliness are the main benefits. Available in a wide range of configurations for both indoor and outdoor use.
Technical specifications
| Manufacturer part number | FF15D24NN53 |
|---|---|
| Approvals | CE; UR; cULus; UKCA |
| Motor Protection | Electronically Protected |
| Operating Voltage | 17-28 V d.c. |
| Rated Current | 0.71 A |
| Rated Power | 17 W |
| Rated Voltage | 24 V d.c. |
| IP Protection Degree | IP55 |
| Operating Temperature | -10÷55 °C |
| Storage Temperature | -40÷70 °C |
| Airflow Direction | Direct |
| Casing Material | PBT UL94 5VB |
| Electrical Connection | Screwless Terminal Block |
| Fan Noise | 60 dB(A) |
| Filter Class | G4 EN 779 ISO coarse 75% ISO 16890 |
| Filter Material | thermo-linked progressive structure synthetic fibre |
| Life Expectancy | 100000 h at 25 °C |
| RAL Number | 9005 |
| Spare Parts Filter Media | M15FPF |
| Wires Section | 0.75-2.5 mm² 20-14 AWG |
| Bearing | Ball Bearing |
| Mounting Wall Thickness | 1.3-3.7 mm |
| Airflow with Exhaust Filter | 130 m³/h |
| Max Airflow | 205 m³/h |
| Max Static Pressure | 97 Pa |
| UL Environmental Type Rating | Type 3R |
| UL File Number Listed | E500932 |
| UL File Number Recognized Component | E237844 |
| UL Surrounding Temperature | 55 °C |
