SALTEK
Inventarna šifra proizvoda (SKU):A03302
SLP-600 V/1 S
SLP-600 V/1 S
Price on request
Poštarina se obračunava prilikom završetka kupnje.

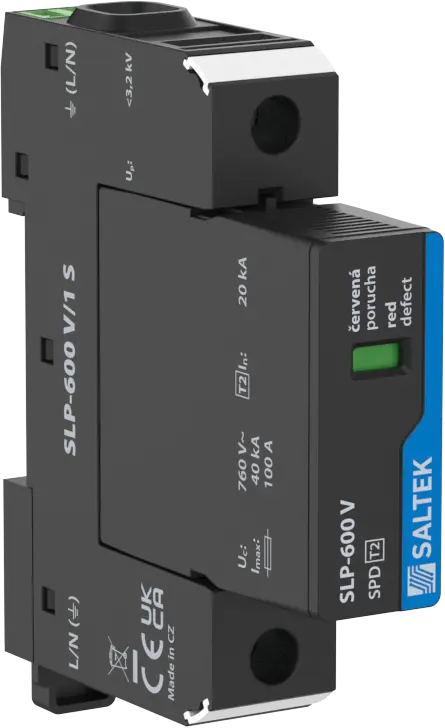

SALTEK SLP-600 V/1 S — Pluggable module, visual fault signalling, remote fault signalling, varistor surge arrester, installation to LV installations, especially to sub-distribution boards, for protection of the installations and equipments against impact of induced overvoltages during a lightning strike or switching overvoltages, suitable for protection of inverters or wind power plant systems.
Technical specifications
| SALTEK order number | A03302 |
|---|---|
| EAN | 8595090533023 |
| Maximum operating voltage | 600 V AC |
| Nominal discharge current | 15 kA |
| Voltage protection level | 3.2 kV |
| ETIM class | EC000941 |
| Net weight | 155 g |
| Packing dimensions | 124 × 82 × 25 mm |
