SALTEK
Inventarna šifra proizvoda (SKU):A01817
SLP-440 V/1
SLP-440 V/1
Price on request
Poštarina se obračunava prilikom završetka kupnje.

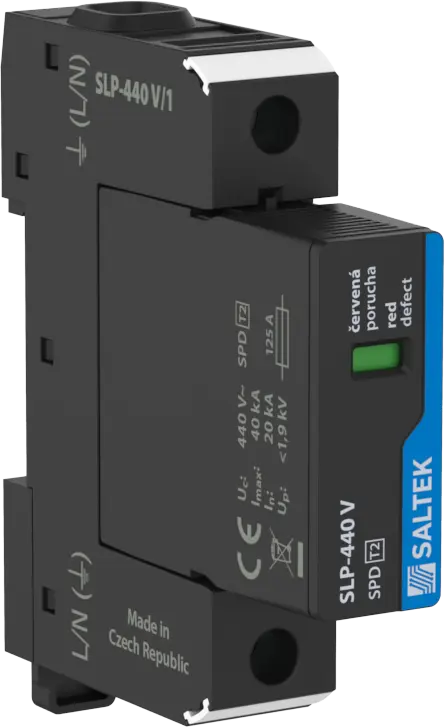

SALTEK SLP-440 V/1 — Pluggable module, visual fault signalling, varistor surge arrester, installation to LV installations, especially to sub-distribution boards, for protection of the installations and equipments against impact of induced overvoltages during a lightning strike or switching overvoltages.
Technical specifications
| SALTEK order number | A01817 |
|---|---|
| EAN | 8595090518174 |
| Nominal voltage | 400 V |
| Maximum operating voltage | 440 V AC |
| Maximum operating voltage (DC) | 585 V DC |
| Nominal discharge current | 20 kA |
| Voltage protection level | 1.9 kV |
| ETIM class | EC000941 |
| Net weight | 130 g |
| Packing dimensions | 124 × 82 × 25 mm |
Technical documentation
Access the latest datasheets, certificates, manuals, CAD files and detailed technical information directly from the manufacturer.
Manufacturer:
SALTEK
