SALTEK
Inventarna šifra proizvoda (SKU):A01722
SLP-275 V/4
SLP-275 V/4
Redovna cijena
€90,82 EUR
Redovna cijena
Prodajna cijena
€90,82 EUR
Poštarina se obračunava prilikom završetka kupnje.
Količina
Učitavanje dostupnosti preuzimanje nije moguće

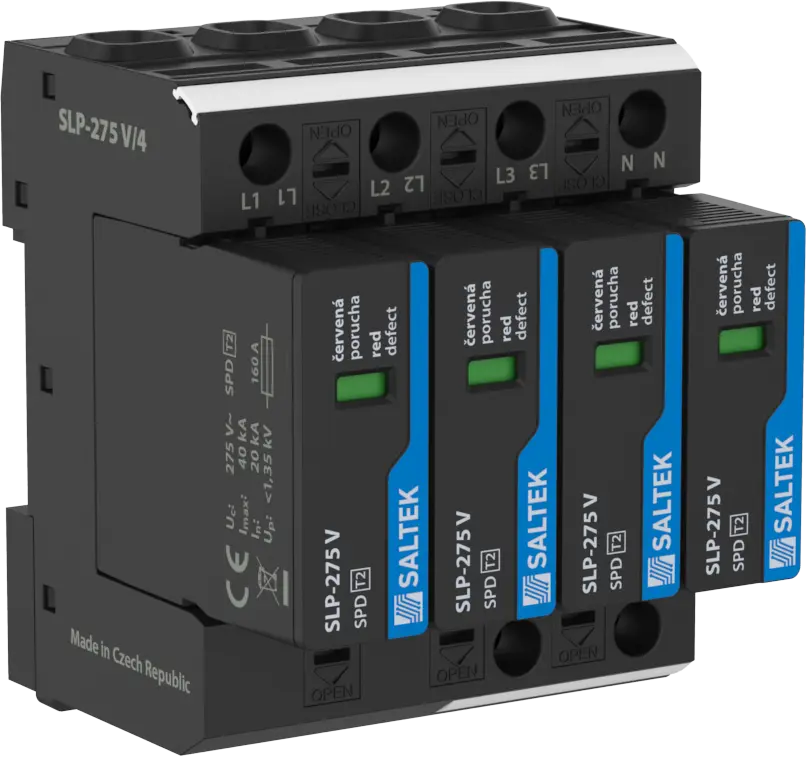

SALTEK SLP-275 V/4 — Pluggable module, visual fault signalling, module locking, four-pole varistor surge arrester, installation to LV installations, especially to sub-distribution boards in TN-S systems, for protection of the installations and equipments against impact of induced overvoltages during a lightning strike or switching overvoltages.
Technical specifications
| SALTEK order number | A01722 |
|---|---|
| EAN | 8595090517221 |
| Nominal voltage | 230 V |
| Maximum operating voltage | 275 V AC |
| Maximum operating voltage (DC) | 350 V DC |
| Nominal discharge current | 20 kA |
| Voltage protection level | 1.35 kV |
| ETIM class | EC000941 |
| Net weight | 400 g |
| Packing dimensions | 123 × 83 × 80 mm |
Technical documentation
Access the latest datasheets, certificates, manuals, CAD files and detailed technical information directly from the manufacturer.
Manufacturer:
SALTEK
