SALTEK
Inventarna šifra proizvoda (SKU):A01946
SLP-275 V/3+1
SLP-275 V/3+1
Učitavanje dostupnosti preuzimanje nije moguće

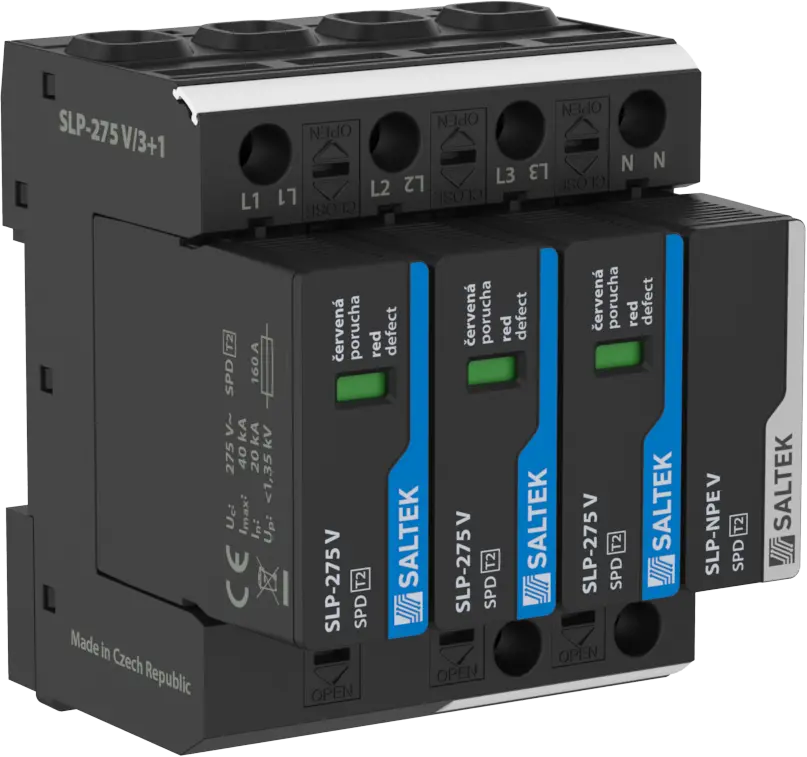

SALTEK SLP-275 V/3+1 — Pluggable module, visual fault signalling, module locking, combination of varistor surge arrester and encapsulated spark gap, connected in the 3+1 mode, installation to LV installations, especially to sub-distribution boards in TT and also TN-S systems, for protection of the installations and equipments against impact of induced overvoltages during a lightning strike or switching overvoltages.
Technical specifications
| SALTEK order number | A01946 |
|---|---|
| EAN | 8595090519461 |
| Nominal voltage | 230 V |
| Maximum operating voltage | 275 V AC |
| Nominal discharge current | 20 kA |
| Voltage protection level | 1.5 kV |
| ETIM class | EC000941 |
| Net weight | 395 g |
| Packing dimensions | 123 × 83 × 80 mm |
Technical documentation
Access the latest datasheets, certificates, manuals, CAD files and detailed technical information directly from the manufacturer.
