SALTEK
Inventarna šifra proizvoda (SKU):A01761

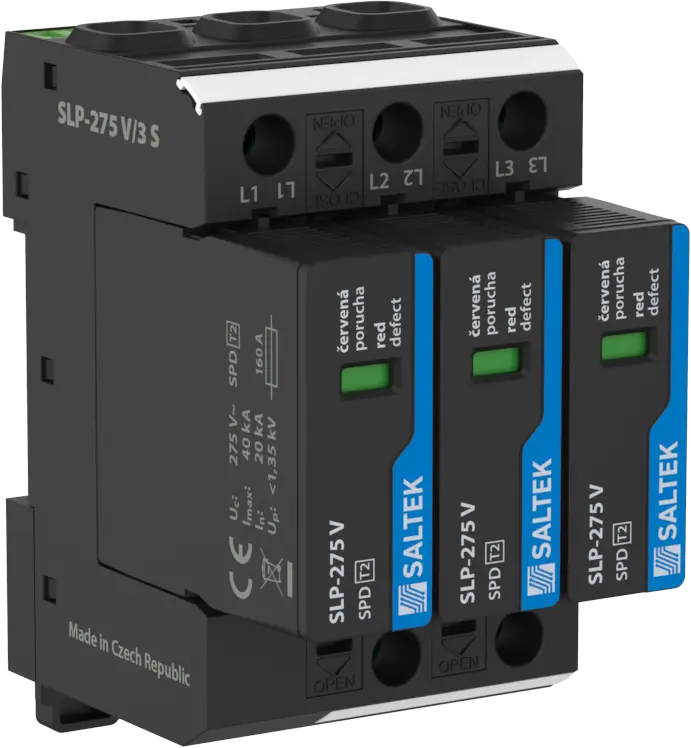

SLP-275 V/3 S
SLP-275 V/3 S
Učitavanje dostupnosti preuzimanje nije moguće
SALTEK SLP-275 V/3 S — Pluggable module, visual fault signalling, module locking, remote fault signalling, three-pole varistor surge arrester, installation to LV installations, especially to sub-distribution boards in TN-C systems, for protection of the installations and equipments against impact of induced overvoltages during a lightning strike or switching overvoltages.
Technical specifications
| SALTEK order number | A01761 |
|---|---|
| EAN | 8595090517610 |
| Nominal voltage | 230 V |
| Maximum operating voltage | 275 V AC |
| Maximum operating voltage (DC) | 350 V DC |
| Nominal discharge current | 20 kA |
| Voltage protection level | 1.35 kV |
| ETIM class | EC000941 |
| Net weight | 325 g |
| Packing dimensions | 123 × 83 × 65 mm |
Technical documentation
Access the latest datasheets, certificates, manuals, CAD files and detailed technical information directly from the manufacturer.
