SALTEK
Inventarna šifra proizvoda (SKU):A04120
ISGC-500H Ex
ISGC-500H Ex
Price on request
Poštarina se obračunava prilikom završetka kupnje.

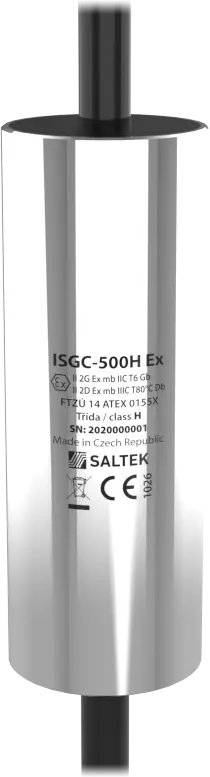

SALTEK ISGC-500H Ex — Connecting cables, stainless steel enclosure, heavy duty encapsulated isolating spark gap for use in Hazardous (Ex) Areas II2G Ex mb IIC T6 Gb and II2D Ex tb IIIC T80 °C Db, for indirect connection (earthing) of isolated conductive parts under lightning conditions, for safe installation in Ex zone 1 (gas) or 21 (dust).
Technical specifications
| SALTEK order number | A04120 |
|---|---|
| EAN | 8595090541202 |
| Lightning impulse current | 100 kA |
| Rated impulse sparkover voltage | 1.5 kV |
| ETIM class | EC000510 |
| Net weight | 1800 g |
| Packing dimensions | 105 × 72 × 26 mm |
Technical documentation
Access the latest datasheets, certificates, manuals, CAD files and detailed technical information directly from the manufacturer.
Manufacturer:
SALTEK
