SALTEK
Inventarna šifra proizvoda (SKU):A04131
ISG-50H Ex
ISG-50H Ex
Price on request
Poštarina se obračunava prilikom završetka kupnje.

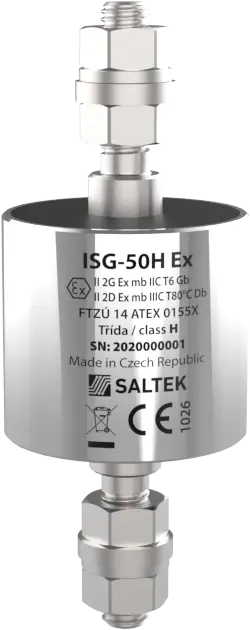

SALTEK ISG-50H Ex — Two M8 bolts with nuts, stainless steel enclosure, heavy duty encapsulated isolating spark gap for use in Hazardous (Ex) Areas II2G Ex mb IIC T6 Gb and II2D Ex tb IIIC T80 °C Db, for indirect connection (earthing) of isolated conductive parts under lightning conditions, for safe installation in Ex zone 1 (gas) or 21 (dust), low DC withstand voltage.
Technical specifications
| SALTEK order number | A04131 |
|---|---|
| EAN | 8595090541318 |
| Lightning impulse current | 100 kA |
| Rated impulse sparkover voltage | 0.9 kV |
| ETIM class | EC000510 |
| Net weight | 225 g |
| Packing dimensions | 105 × 72 × 26 mm |
Technical documentation
Access the latest datasheets, certificates, manuals, CAD files and detailed technical information directly from the manufacturer.
Manufacturer:
SALTEK
