SALTEK
Inventarna šifra proizvoda (SKU):A04086
ISG-50
ISG-50
Price on request
Poštarina se obračunava prilikom završetka kupnje.

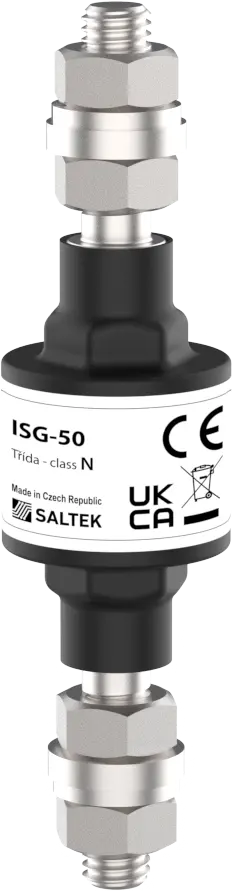

SALTEK ISG-50 — Two M8 bolts with nuts, encapsulated high-performance isolating spark gap, for indirect connection (earthing) of isolated conductive parts under lightning conditions, where direct connection is not allowed, very low DC withstand voltage.
Technical specifications
| SALTEK order number | A04086 |
|---|---|
| EAN | 8595090540861 |
| Lightning impulse current | 50 kA |
| Rated impulse sparkover voltage | 0.9 kV |
| ETIM class | EC000510 |
| Net weight | 125 g |
| Packing dimensions | 105 × 72 × 26 mm |
Technical documentation
Access the latest datasheets, certificates, manuals, CAD files and detailed technical information directly from the manufacturer.
Manufacturer:
SALTEK
