SALTEK
Inventarna šifra proizvoda (SKU):A06146
FLP-PV550 V/U S
FLP-PV550 V/U S
Učitavanje dostupnosti preuzimanje nije moguće

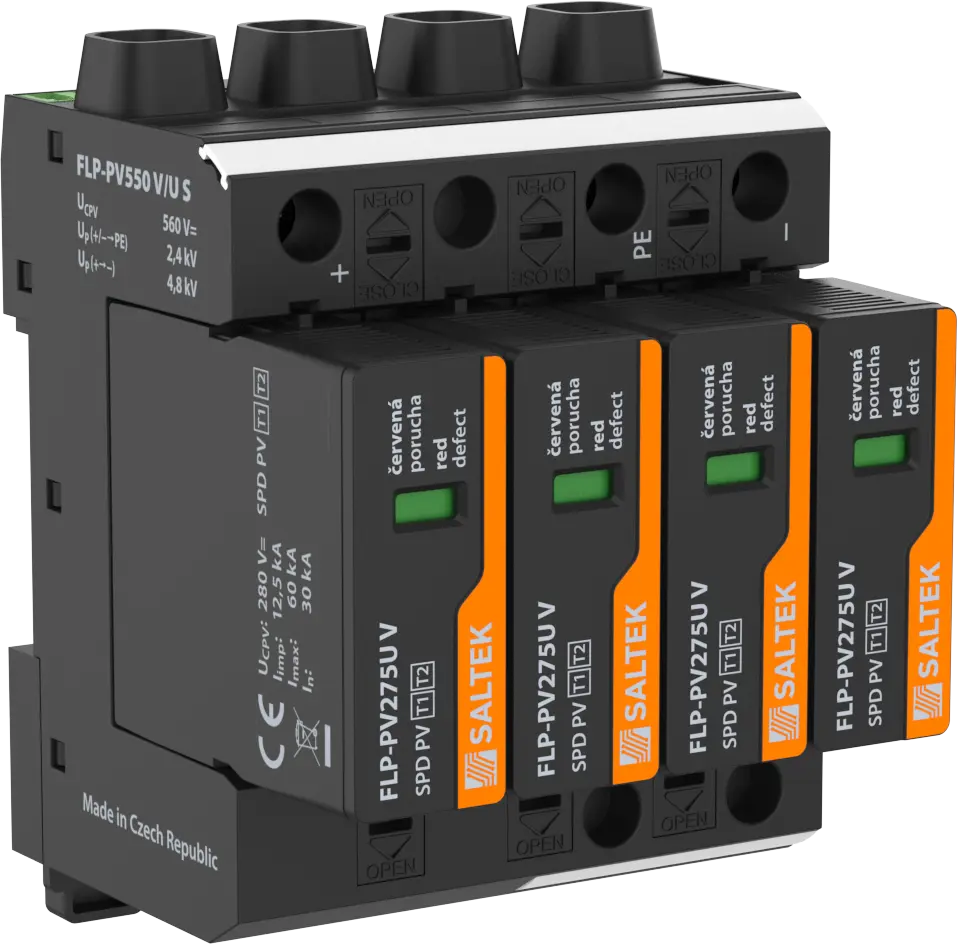

SALTEK FLP-PV550 V/U S — Pluggable module, visual fault signalling, module locking, remote fault signalling, varistor lightning current arrester and surge arrester in 'U' connection, for protection of PV systems on the roofs, where the separating spark-over distance is not kept (connection to LPS), maximum continuous operating voltage for PV application: UCPV ? 1.2x UOC STC.
Technical specifications
| SALTEK order number | A06146 |
|---|---|
| EAN | 8595090561460 |
| Nominal voltage | 0 V |
| Maximum operating voltage | 0 V AC |
| Maximum operating voltage (DC) | 560 V DC |
| ETIM class | EC000381 |
| Net weight | 540 g |
| Packing dimensions | 123 × 83 × 80 mm |
