SALTEK
Inventarna šifra proizvoda (SKU):A06729
DM-048/1-R-DJ
DM-048/1-R-DJ
Price on request
Poštarina se obračunava prilikom završetka kupnje.

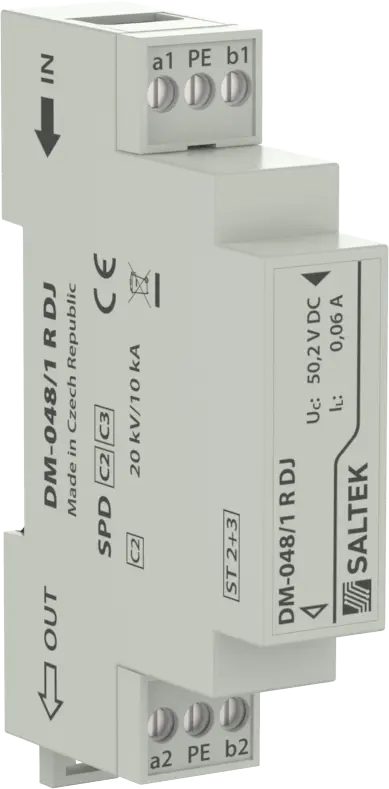

SALTEK DM-048/1-R-DJ — Coupling impedance (R – resistance), coarse and fine surge protection for 2-core signalling lines, installation close to protected equipment, for protection of communication interfaces of I&C, electronic security and fire detection systems, etc. (mainly for RS-485 interfaces) against impact of surge voltage, coarse and fine surge protection in differential mode (core – core) and common mode (core – PE).
Technical specifications
| SALTEK order number | A06729 |
|---|---|
| EAN | 8595090567295 |
| Nominal voltage | 48 V |
| Maximum operating voltage | 35.6 V AC |
| Maximum operating voltage (DC) | 50.2 V DC |
| Nominal load current | 0.5 A |
| Frequency / bandwidth value | 5 MHz |
| ETIM class | EC000943 |
| Net weight | 57 g |
| Packing dimensions | 124 × 82 × 25 mm |
Technical documentation
Access the latest datasheets, certificates, manuals, CAD files and detailed technical information directly from the manufacturer.
Manufacturer:
SALTEK
