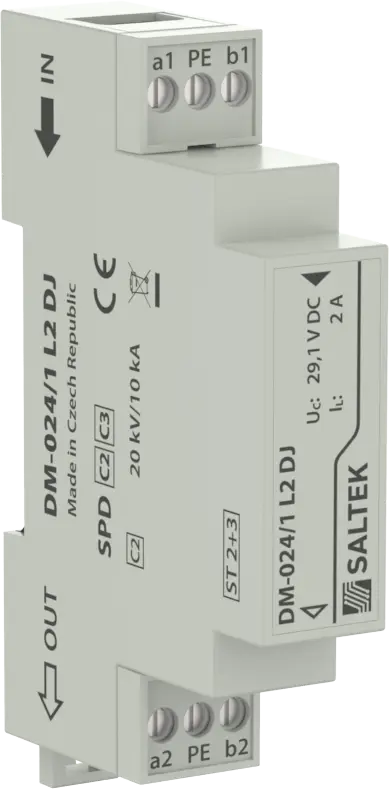

DM-024/1-L2-DJ

Name: DM-024/1-L2-DJ
Brand: SALTEK
SKU: A06732
Availability: InStock

Price on request

Rasprodano

Poštarina se obračunava prilikom završetka kupnje.

Request a price

SALTEK DM-024/1-L2-DJ — Coupling impedance (L – inductance), coarse and fine surge protection for 2-core signalling lines, installation close to protected equipment, for protection of communication interfaces of I&C, electronic security and fire detection systems, etc. (mainly for RS-485 interfaces) against impact of surge voltage, coarse and fine surge protection in differential mode (core – core) and common mode (core – PE).

Technical specifications

SALTEK order number	A06732
EAN	8595090567325
Nominal voltage	24 V
Maximum operating voltage	25 V AC
Maximum operating voltage (DC)	36 V DC
Nominal load current	2 A
Frequency / bandwidth value	0.15 MHz
ETIM class	EC000943
Net weight	68 g
Packing dimensions	124 × 82 × 25 mm
