SALTEK
Inventarna šifra proizvoda (SKU):A01349
DM-012/1 3R DJ
DM-012/1 3R DJ

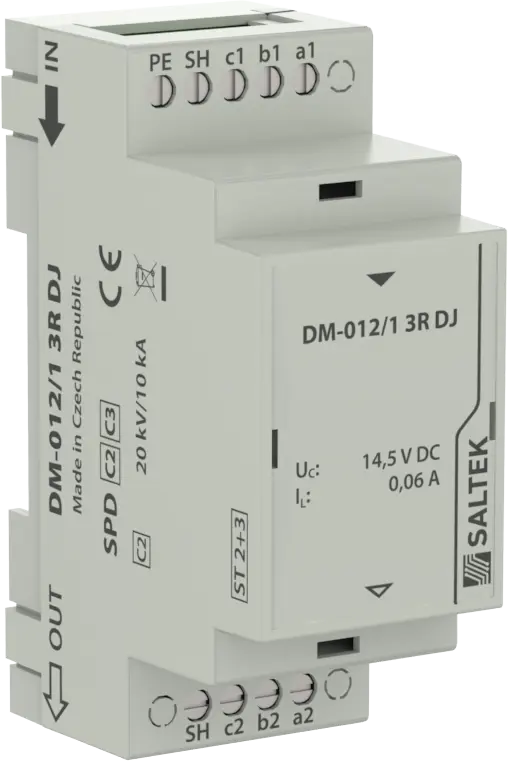

SALTEK DM-012/1 3R DJ — Coupling impedance (R – resistance), coarse and fine surge protection for 3-core signalling lines, installation close to protected equipment, for protection of communication interfaces of I&C, electronic security and fire detection systems, etc. (mainly for RS-485 interfaces) against impact of surge voltage, coarse and fine surge protection in differential mode (core – core) and coarse protection in common mode (core – PE).
Technical specifications
| SALTEK order number | A01349 |
|---|---|
| EAN | 8595090513490 |
| Nominal voltage | 12 V |
| Maximum operating voltage | 10.2 V AC |
| Maximum operating voltage (DC) | 14.5 V DC |
| Nominal load current | 0.06 A |
| Frequency / bandwidth value | 1.7 MHz |
| ETIM class | EC000943 |
| Net weight | 70 g |
| Packing dimensions | 65 × 63 × 105 mm |
Technical documentation
Access the latest datasheets, certificates, manuals, CAD files and detailed technical information directly from the manufacturer.
