DM-006/1 L DJ

Name: DM-006/1 L DJ
Brand: SALTEK
SKU: A01557
Availability: InStock

Price on request

Rasprodano

Poštarina se obračunava prilikom završetka kupnje.

Request a price

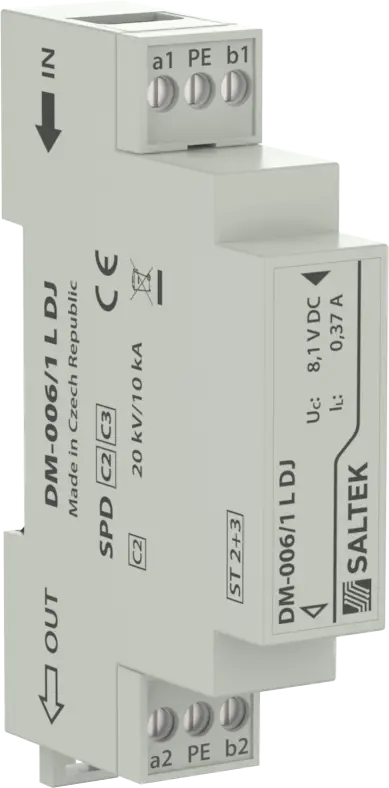

SALTEK DM-006/1 L DJ — Coupling impedance (L – inductance), coarse and fine surge protection for 2-core signalling lines, installation close to protected equipment, for protection of communication interfaces of I&C, electronic security and fire detection systems, etc. (mainly for RS-485 interfaces) against impact of surge voltage, coarse and fine surge protection in differential mode (core – core) and common mode (core – PE).

Technical specifications

SALTEK order number	A01557
EAN	8595090515579
Nominal voltage	6 V
Maximum operating voltage	5.7 V AC
Maximum operating voltage (DC)	8.1 V DC
Nominal load current	0.37 A
Frequency / bandwidth value	0.16 MHz
ETIM class	EC000943
Net weight	45 g
Packing dimensions	105 × 72 × 26 mm
