SALTEK
Inventarna šifra proizvoda (SKU):A06620
DL-1G-POE-INJECTOR
DL-1G-POE-INJECTOR
Price on request
Poštarina se obračunava prilikom završetka kupnje.

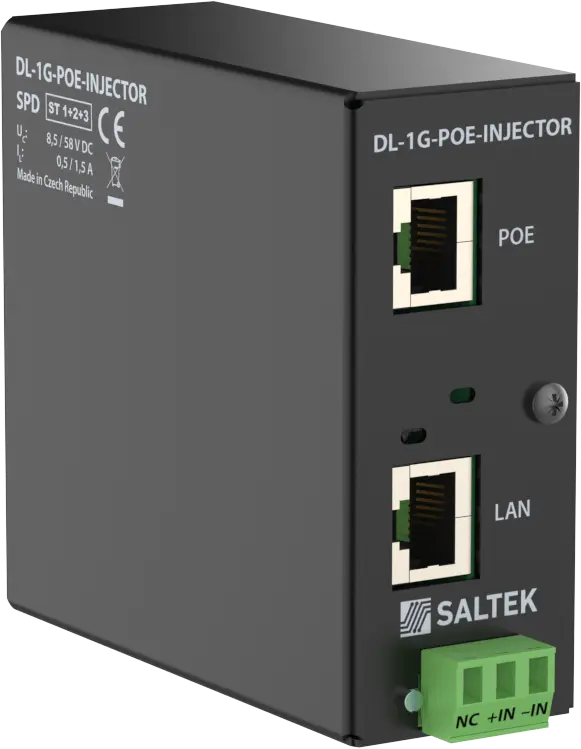

SALTEK DL-1G-POE-INJECTOR — RJ45 + SV connectors, two-stage surge protection device for Ethernet protection, combined with PoE protection including the injector, installed at the entry point into the building object, near the equipment to be protected, at the interface of the LPZ 0 and LPZ 1 and higher zones, for use in Ethernet Cat. 6 lines with PoE (Power over Ethernet), operating in A and B modes, to protect them from peak overvoltages.
Technical specifications
| SALTEK order number | A06620 |
|---|---|
| EAN | 8595090566205 |
| Nominal voltage | 8.5 V |
| Maximum operating voltage (DC) | 8.5 V DC |
| Nominal load current | 0.5 A |
| Frequency / bandwidth value | 250 MHz |
| ETIM class | EC000943 |
| Net weight | 289 g |
| Packing dimensions | 490 × 108 × 88 mm |
Technical documentation
Access the latest datasheets, certificates, manuals, CAD files and detailed technical information directly from the manufacturer.
Manufacturer:
SALTEK
