SALTEK
Inventarna šifra proizvoda (SKU):A07069
DL-1G-60V-POE
DL-1G-60V-POE
Price on request
Poštarina se obračunava prilikom završetka kupnje.

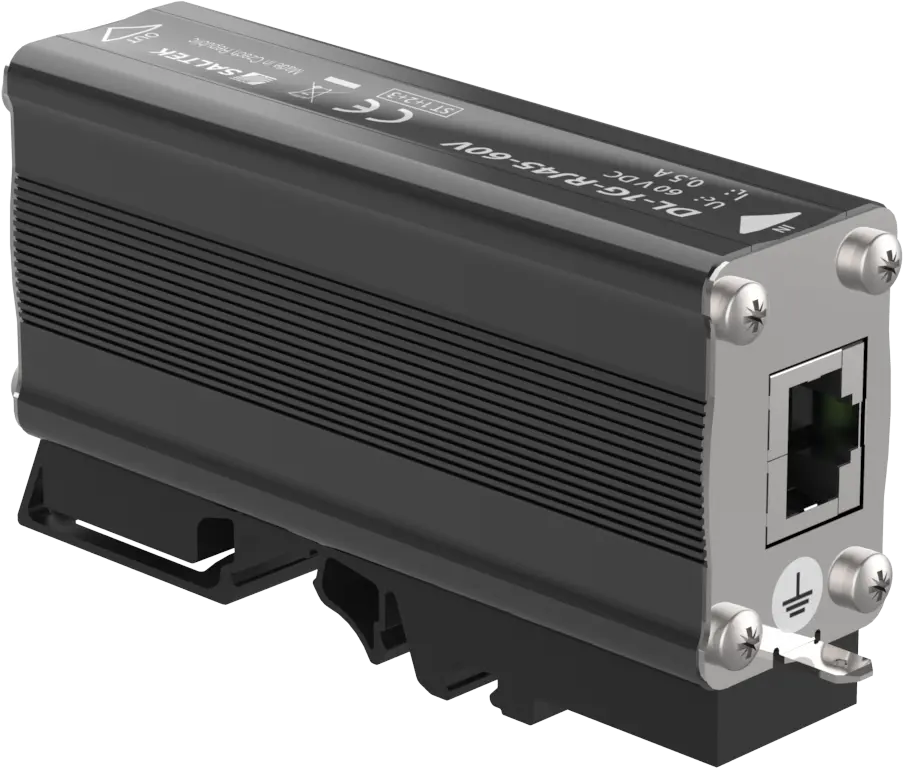

SALTEK DL-1G-60V-POE — LPZ 0 and higher, two-stage surge protection for Ethernet and general structured cabling with signals with levels up to 60 V, installation on line entry into the building at the boundary of zones LPZ 0 and LPZ 1 and higher, for protection of Ethernet technologies, IP telephony, KNX, DMX, RS-485, MaR via twisted pairs of general structured cabling against pulse overvoltage.
Technical specifications
| SALTEK order number | A07069 |
|---|---|
| EAN | 8595090562207 |
| Nominal voltage | 60 V |
| Maximum operating voltage (DC) | 60 V DC |
| Nominal load current | 0.5 A |
| Frequency / bandwidth value | 250 MHz |
| ETIM class | EC000943 |
| Net weight | 135 g |
| Packing dimensions | 120 × 81 × 35 mm |
Technical documentation
Access the latest datasheets, certificates, manuals, CAD files and detailed technical information directly from the manufacturer.
Manufacturer:
SALTEK
