SALTEK
Inventarna šifra proizvoda (SKU):A05420
BDG-012-V/1-R1
BDG-012-V/1-R1

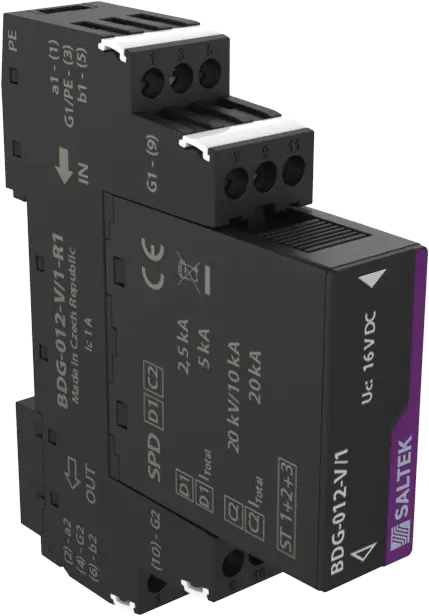

SALTEK BDG-012-V/1-R1 — Pluggable module, coupling impedance (R – resistance), coarse and fine surge protection of 2-core telecommunication, data and other lines, installation at the boundary of LPZ 0 and LPZ 1 zones at the line entry into building, for protection of communication interfaces of I&C, electronic security and fire detection systems, etc. (mainly the measuring circuits) against impact of surge voltage, coarse and fine surge protection in differential mode (core – core) and coarse protection in common mode (core – PE).
Technical specifications
| SALTEK order number | A05420 |
|---|---|
| EAN | 8595090554202 |
| Nominal voltage | 12 V |
| Maximum operating voltage | 11 V AC |
| Maximum operating voltage (DC) | 16 V DC |
| Nominal load current | 1 A |
| Frequency / bandwidth value | 3 MHz |
| ETIM class | EC000943 |
| Net weight | 90 g |
| Packing dimensions | 124 × 82 × 25 mm |
Technical documentation
Access the latest datasheets, certificates, manuals, CAD files and detailed technical information directly from the manufacturer.
