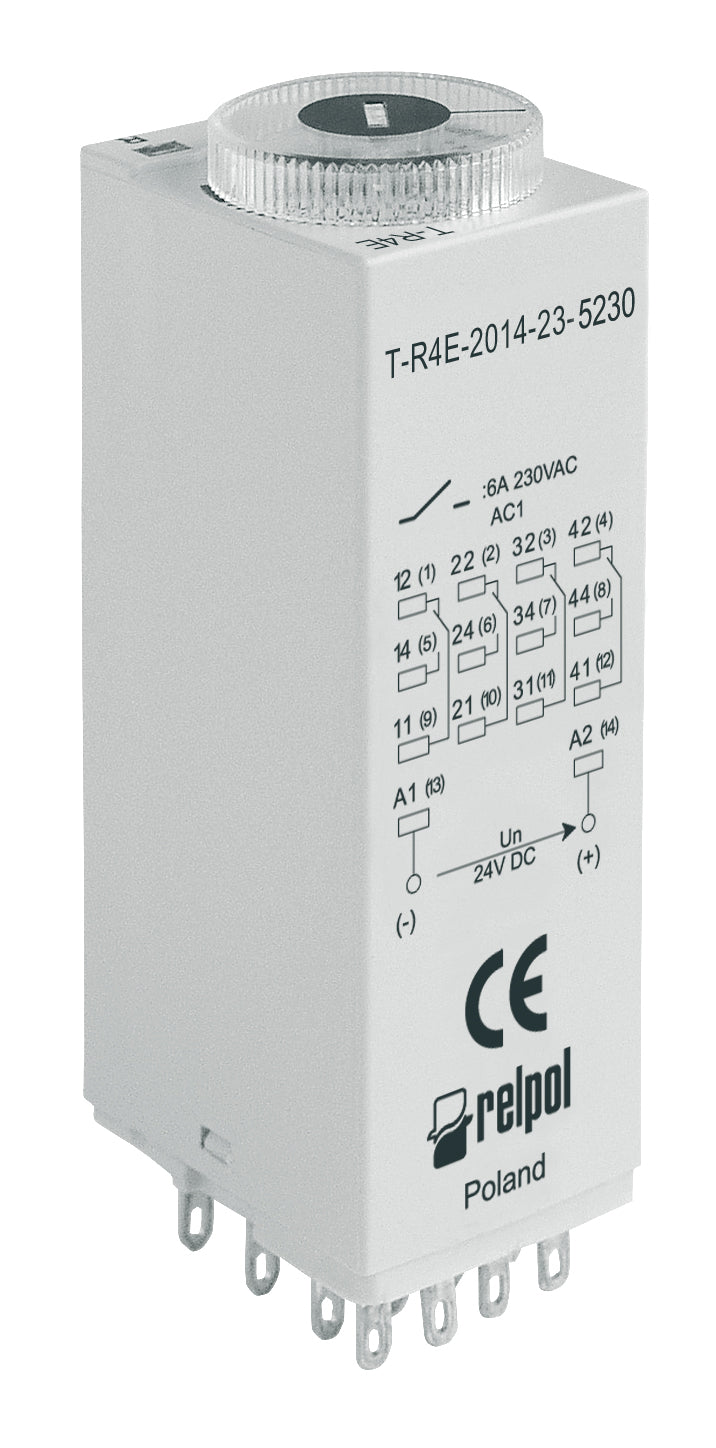

Relpol T-R4E-2014-23-5230 – Time Relays

Name: Relpol T-R4E-2014-23-5230 – Time Relays
Brand: Relpol
SKU: T-R4E-2014-23-5230
Availability: InStock

Price on request

Rasprodano

Poštarina se obračunava prilikom završetka kupnje.

Request a price

Time relays , T-R4E-2014-23-5230, E - ON delay, 4 CO (4PDT), AgNi, 230V AC, Rated load AC1 6 A, Rated switching voltage 230 V AC, Operating temperature °C -20…+55, for plug-in sockets

Technical specifications

Type of coil supply	AC
Coil voltage	230 V
Contact material	AgNi
Number and type of contacts	4 CO
Rated load AC1	6 A / 230 V AC
Rated switching voltage	230 V AC
Mounting	for plug-in sockets
Depth	27,5
Width mm	21,2
Height mm	62,5
Weight kg	0,049
ETIM class	EC001439
Execution	Standard
Relay type	T-R4
Ip cover	IP 20
Time ranges	1 s; 10 s; 1 min.; 10 min.; 1 h; 10 h; 100 h
