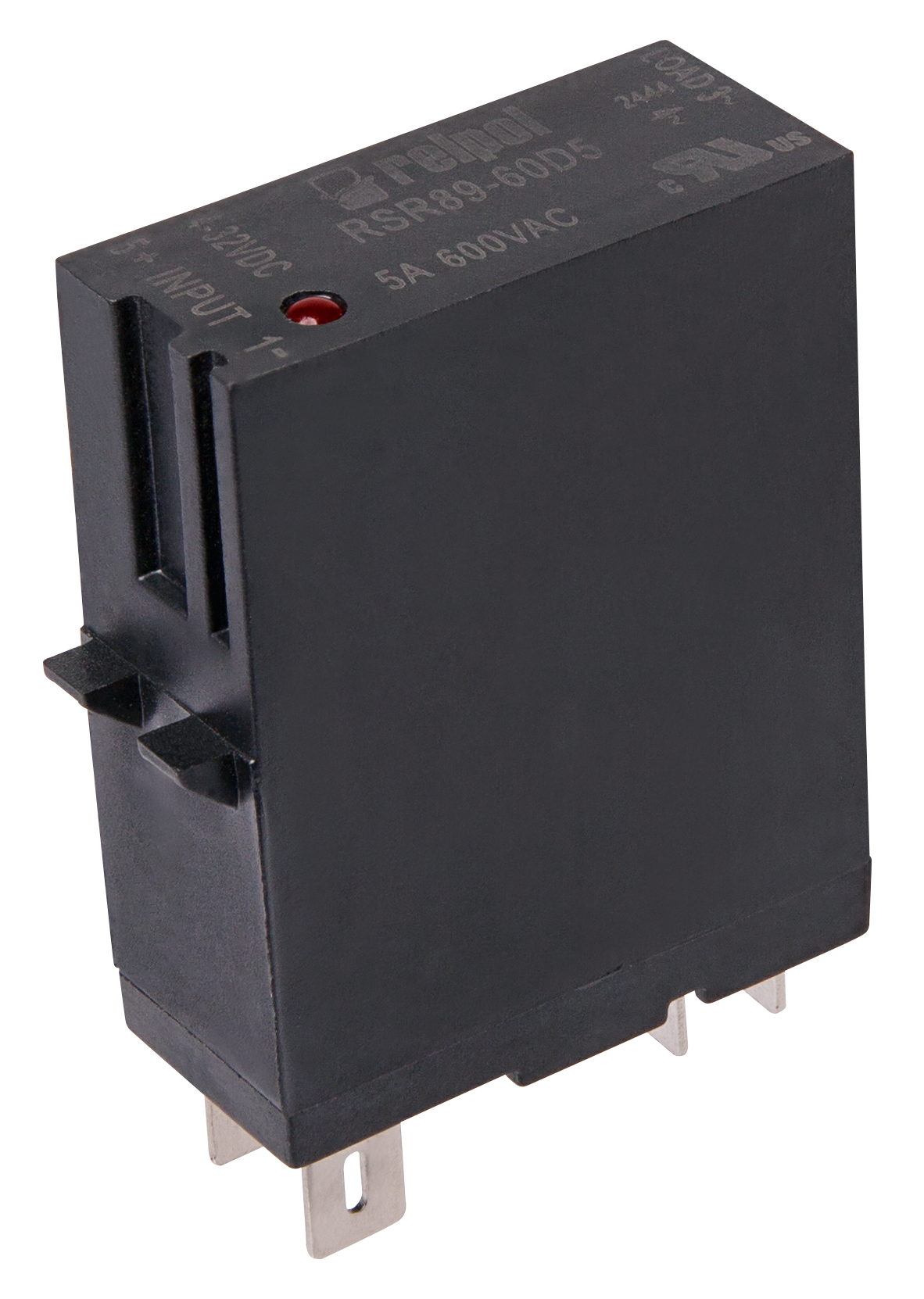

Relpol RSR89-60D5-T – Solid State Relays
Relpol RSR89-60D5-T – Solid State Relays
Price on request
Poštarina se obračunava prilikom završetka kupnje.
Single-phase relay RSR89, load current: 5 A. Control input: 4–32 V DC. Output voltage: 24–660 V AC. Zero-cross switching with TVS protection. Blocking voltage: 1200 Vpk.
Technical specifications
| Type of coil supply | DC |
|---|---|
| Depth | 32 |
| Width mm | 13 |
| Height mm | 43 |
| Weight kg | 0,02 |
| ETIM class | EC002055 |
| Relay type | RSR89 |
| Ip cover | IP 00 |
Technical documentation
Access the latest datasheets, certificates, manuals, CAD files and detailed technical information directly from the manufacturer.
Manufacturer:
Relpol
