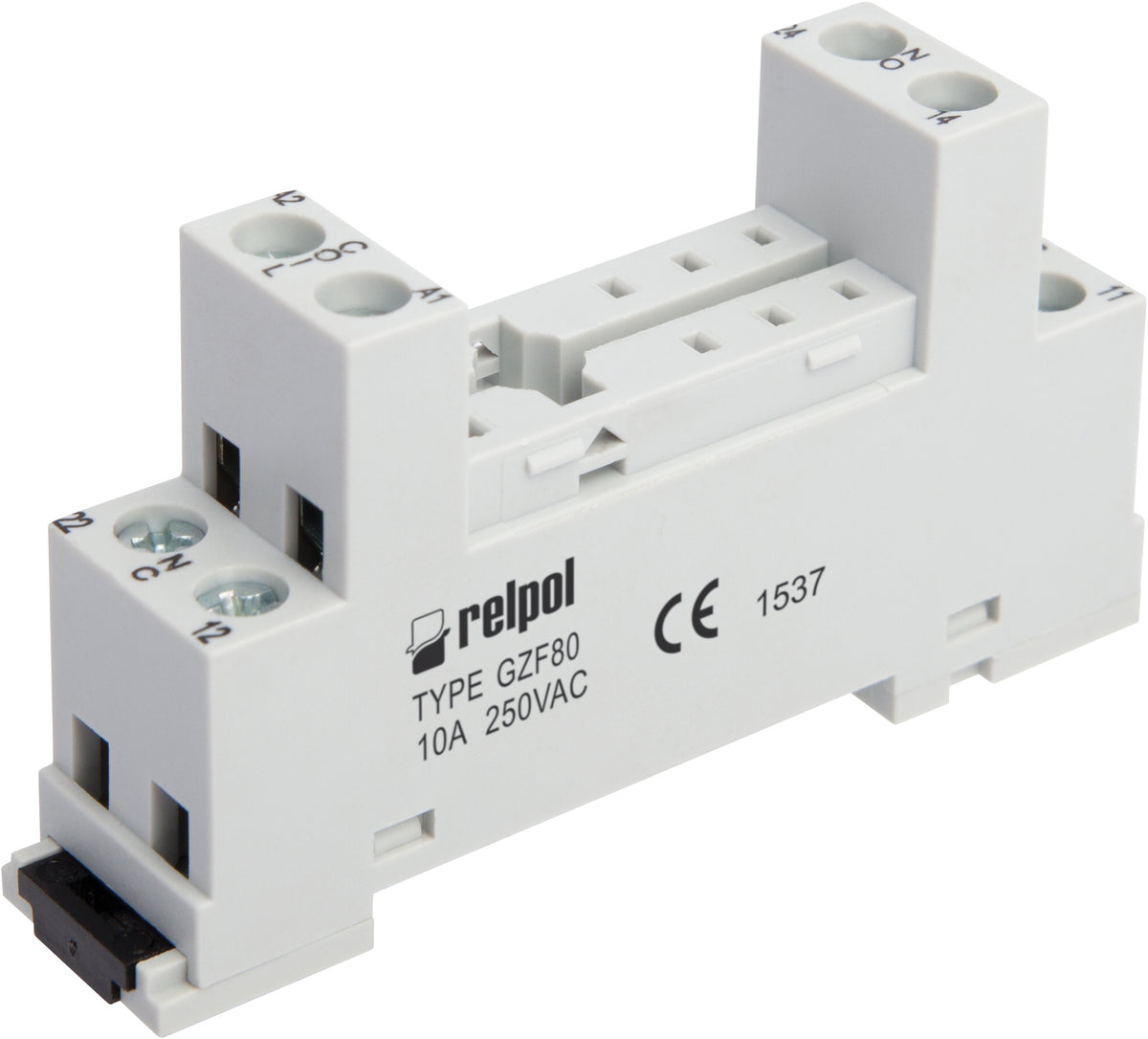

Relpol GZF80 – Relay Sockets & Bases
Relpol GZF80 – Relay Sockets & Bases
Price on request
Poštarina se obračunava prilikom završetka kupnje.
Plug-in sockets for relays: RM84, RM85, RM85 inrush, RM85 105 °C sensitive, RM87L, RM87L sensitive,RM87P, RM87P sensitive. Screw terminals. Max. tightening moment for the terminal: 0,5 Nm. 35 mm rail mount acc. to PN-EN 60715 or on panel mounting 67,2 x 15,5 x 36,5 mm. Two poles, 5 mm pinout. Rated load 10 A, 250 V AC .
Technical specifications
| Mounting | with screw terminals |
|---|---|
| Depth | 67,2 |
| Width mm | 15,5 |
| Height mm | 36,5 |
| Weight kg | 0,03 |
| Relay type | Socket GZF80 - screw terminals |
| Ip cover | IP 20 |
Technical documentation
Access the latest datasheets, certificates, manuals, CAD files and detailed technical information directly from the manufacturer.
