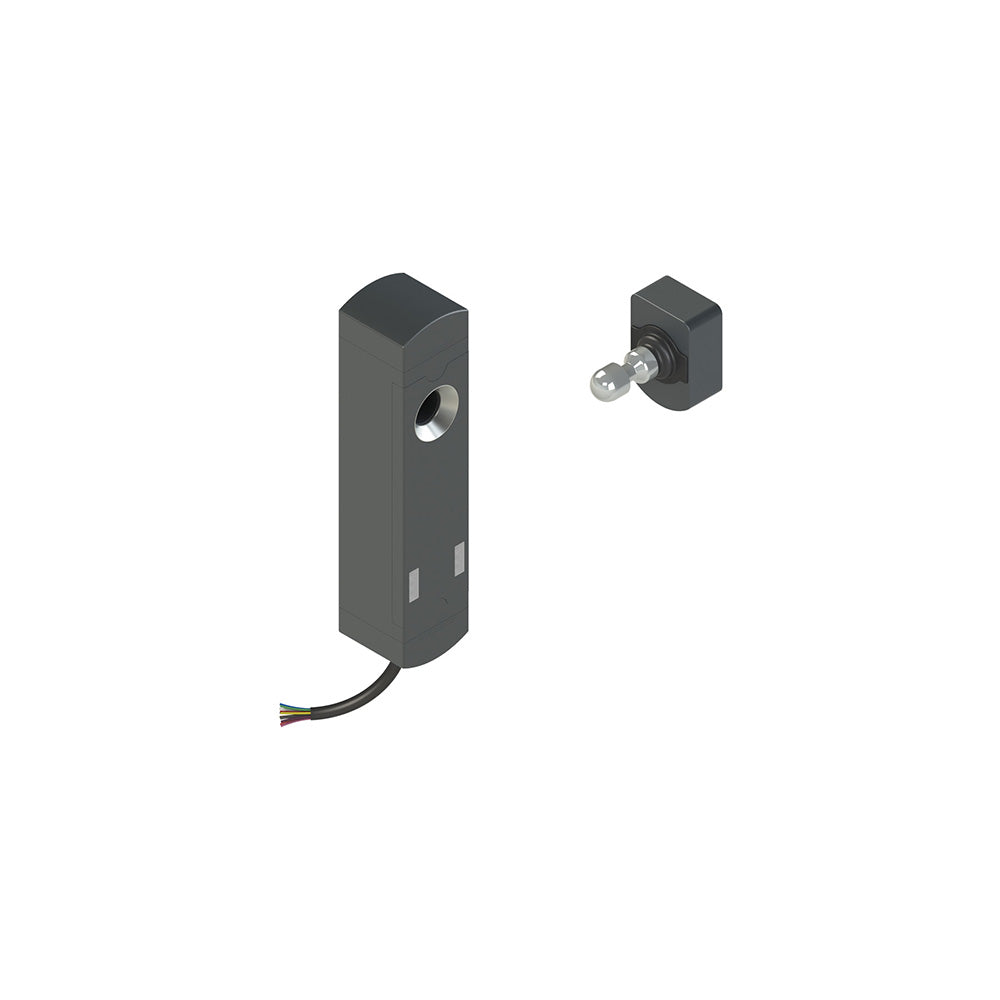

NS E5ZZ1SA4-F41

NS series safety locking switch, with actuator, Actuator: Complete with actuator with high coding level VN NS-F41, Housing: Technopolymer housing, Working method: E working method, locked actuator with energised solenoid; Mode 1: OS safety outputs active with locked protection, Inputs and outputs : 2 safety inputs IS1-IS2, ; 2 safety outputs OS1-OS2, ; 1 signalling output O3: actuator inserted, ; 1 signalling output O4: actuator locked, ; 2 solenoid activation inputs IE1-IE2, ; 1 programming / reset input I3, ; 1 feedback input EDM I5 ; , Auxiliary release with variable orientation: Without release, Output connection direction: Cable or connector at bottom, Type of connection: PVC cable 12x0.14 mm2, length 4m, Protection degree: IP67 according to EN 60529 and IP69K according to ISO 20653, Button configuration: No device.

Technical specifications

Documentation

• English catalogue / technical documentation 1
