Pizzato
Inventarna šifra proizvoda (SKU):NA B110CV-SMK
NA B110CV-SMK
NA B110CV-SMK
Availability: Ships in 2–3 weeks
Učitavanje dostupnosti preuzimanje nije moguće

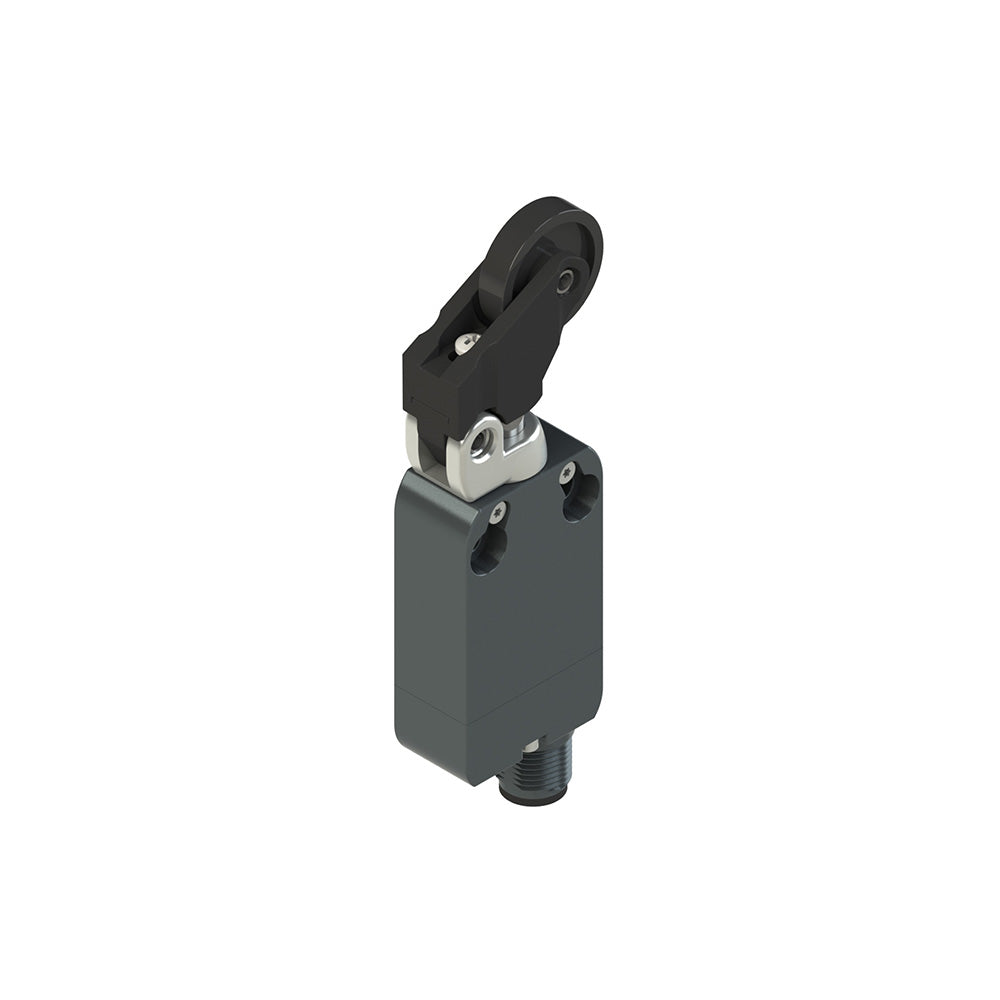

Modular prewired switch with adjustable offset roller lever, Protection degree: IP67 according to EN 60529 and IP69K according to ISO 20653, Housing: Metal housing, 20 mm fixing points, Contact block: 1NO+1NC snap action (B11), Head: Adjustable offset roller lever, Kind of connection: Metal connector M12 from bottom 5 poles, Positive opening: Yes.
Technical specifications
| Manufacturer part number | NA B110CV-SMK |
|---|---|
| EAN | 8018851175824 |
| Minimum order quantity | 1 |
| Weight | 116 g |
| Customs tariff number | 85369095 |
| Product range | NA - NB |
| ETIM class | EC000030 |
Documentation
Technical documentation
Access the latest datasheets, certificates, manuals, CAD files and detailed technical information directly from the manufacturer.
