Pizzato
Inventarna šifra proizvoda (SKU):FP 20R2-C10F7
FP 20R2-C10F7
FP 20R2-C10F7
Availability: Ships in 2–3 weeks
Učitavanje dostupnosti preuzimanje nije moguće

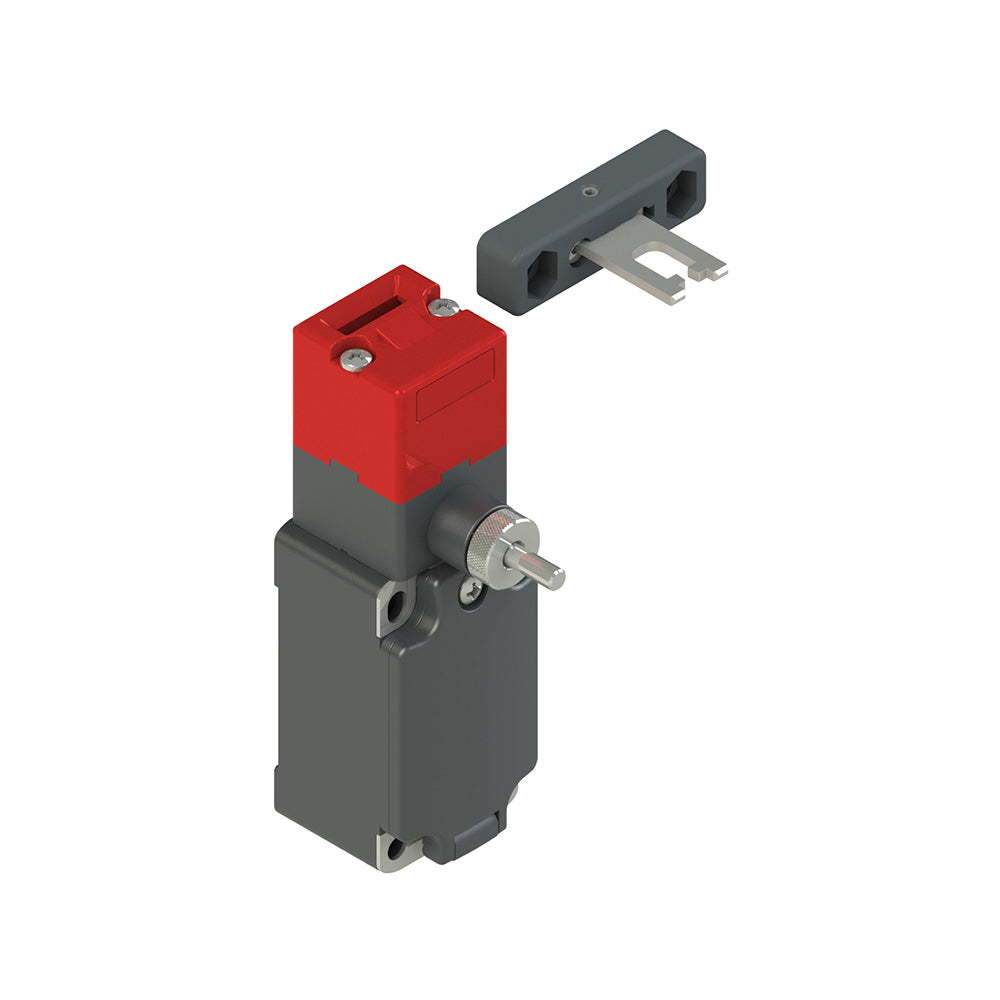

Safety switch with manual mechanical delay , Housing: Made of glass-reinforced technopolymer, one threaded PG 13,5 conduit entry (FP series), Contact block: 1NO+2NC slow action (B20), Head: With manual mechanical delay, short knob, 10 s, Actuator: Adjustable in one direction, Protection degree: IP67 according to EN 60529, Positive opening: Yes.
Technical specifications
| Manufacturer part number | FP 20R2-C10F7 |
|---|---|
| EAN | 8018851116629 |
| Minimum order quantity | 1 |
| Weight | 226 g |
| Customs tariff number | 85369095 |
| Product range | With mechanical delay |
| ETIM class | EC002593 |
