Pizzato
Inventarna šifra proizvoda (SKU):FM 576-M2
FM 576-M2
FM 576-M2
Availability: Ships in 2–3 weeks
Učitavanje dostupnosti preuzimanje nije moguće

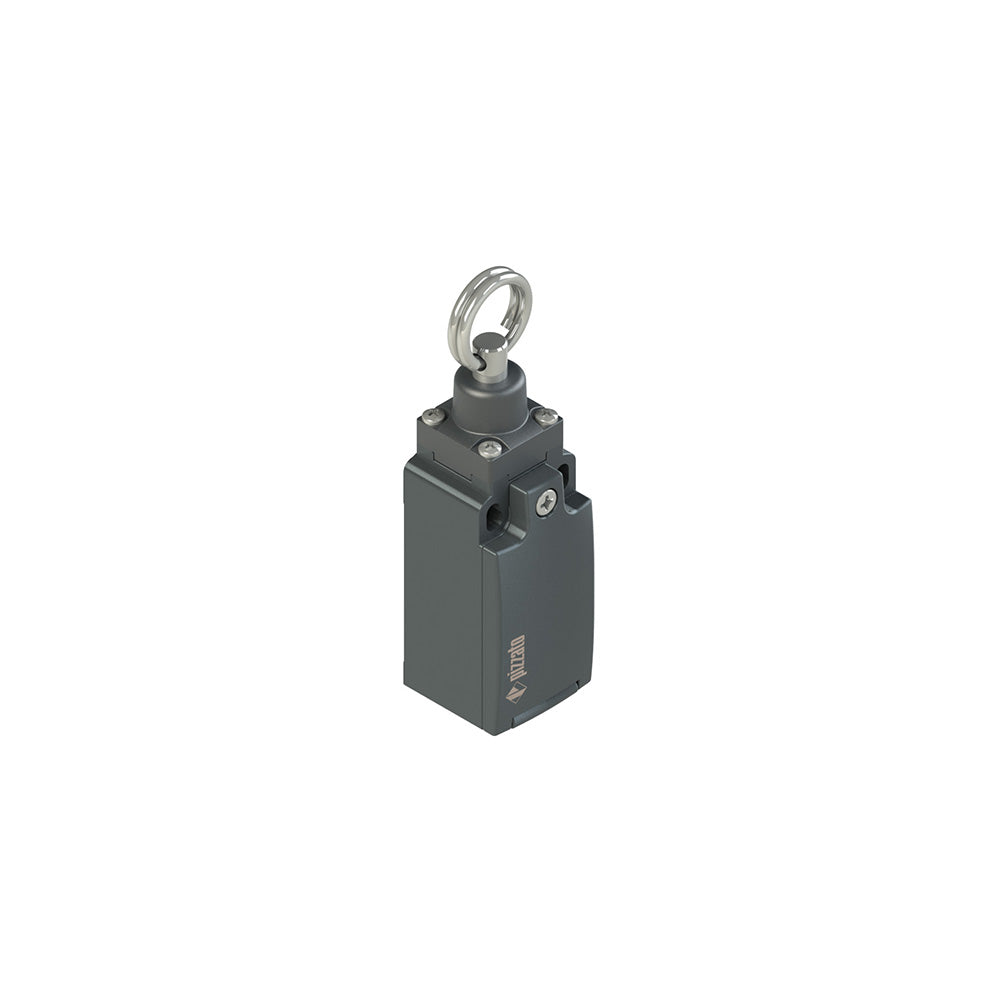

Position switch for rope actuation, Housing: Metal housing, one threaded M20x1,5 conduit entry (FM series), Contact block: 1NO+1NC snap action (B5), Head: For rope actuation, Protection degree: IP67 according to EN 60529 and IP69K according to ISO 20653, Note: Actuator 76 in rest position keep contact block activated. Consequently all NO and NC contacts are inverted in rest position.
Technical specifications
| Manufacturer part number | FM 576-M2 |
|---|---|
| EAN | 8018851101045 |
| Minimum order quantity | 1 |
| Weight | 186 g |
| Customs tariff number | 85369095 |
| Product range | FM |
| ETIM class | EC000030 |
Technical documentation
Access the latest datasheets, certificates, manuals, CAD files and detailed technical information directly from the manufacturer.
