Pizzato
Inventarna šifra proizvoda (SKU):FG 60PD1D0Z-F21
FG 60PD1D0Z-F21
FG 60PD1D0Z-F21
Availability: Ships in 2–3 weeks
Učitavanje dostupnosti preuzimanje nije moguće

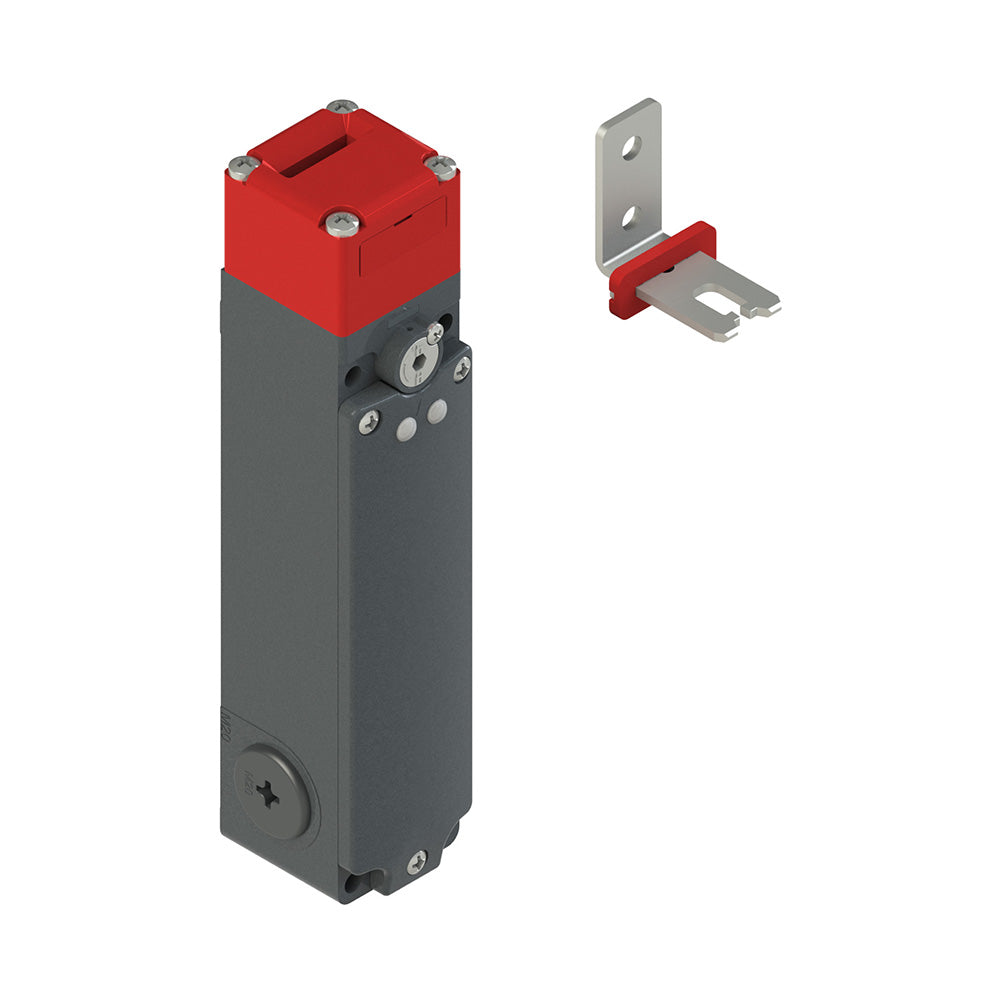

FG series safety switch with separate actuator with lock, Working method: D working method, locked actuator with de-energized solenoid, Protection degree: IP67 according to EN 60529 with cable gland having equal or higher protection degree, Housing: Metal housing, three M20x1,5 cable entries, Contact block: 3NC moved by actuator and 1NC moved by solenoid, Head: Rotating head, Power: 24 Vac/dc, LED: Without LED, Actuator: Complete with right-angled actuator VF KEYF21.
Technical specifications
| Manufacturer part number | FG 60PD1D0Z-F21 |
|---|---|
| EAN | 8018851098741 |
| Minimum order quantity | 1 |
| Weight | 1106 g |
| Customs tariff number | 85369095 |
| Product range | FG switches with solenoid |
| ETIM class | EC002593 |
