Pizzato
Inventarna šifra proizvoda (SKU):FG 60GD5D1Z
FG 60GD5D1Z
FG 60GD5D1Z
Availability: Ships in 2–3 weeks
Učitavanje dostupnosti preuzimanje nije moguće

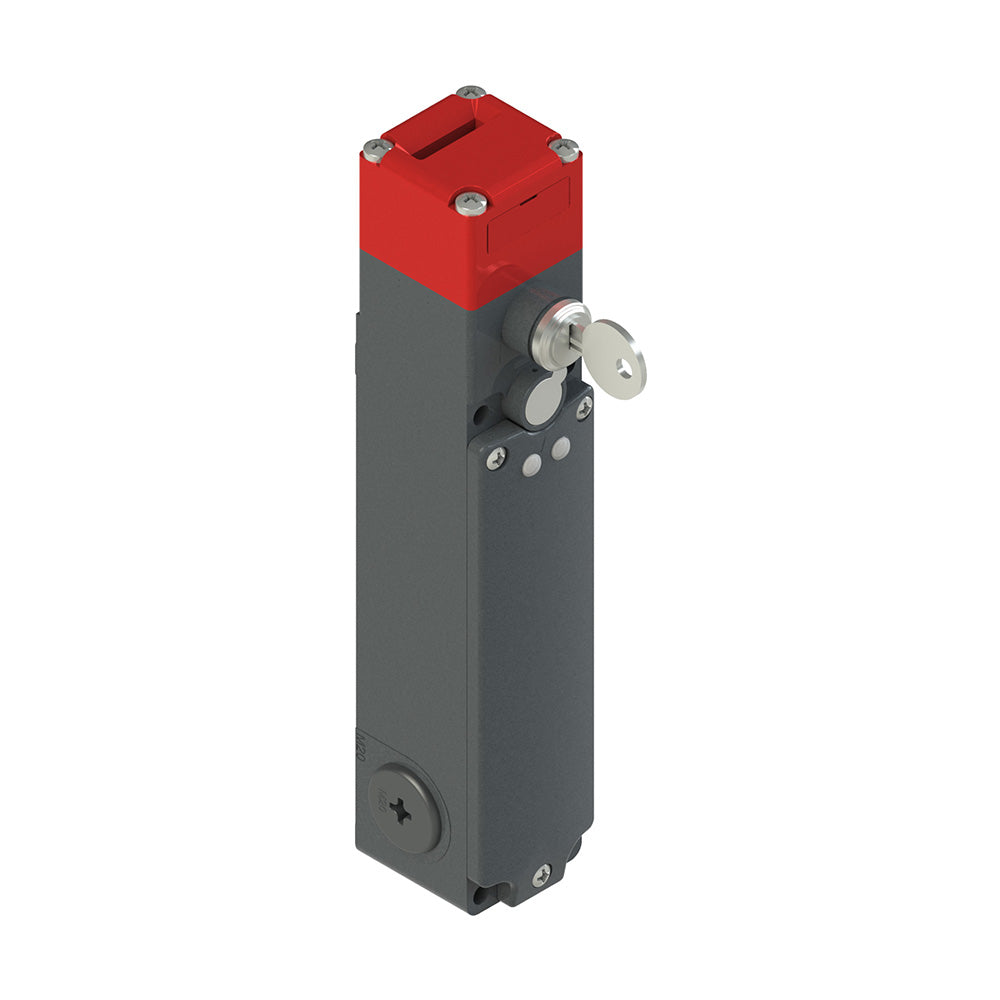

FG series safety switch with separate actuator with lock, Working method: D working method, locked actuator with de-energized solenoid, Protection degree: IP67 according to EN 60529 with cable gland having equal or higher protection degree, Housing: Metal housing, three M20x1,5 cable entries, Contact block: 2NC moved by actuator and 2NC moved by solenoid, Head: Rotating head with lock auxiliary release device, Power: 120 Vac/dc, LED: Without LED, Actuator: Without actuator , Positive opening: Yes.
Technical specifications
| Manufacturer part number | FG 60GD5D1Z |
|---|---|
| EAN | 8018851252259 |
| Minimum order quantity | 1 |
| Weight | 1238 g |
| Customs tariff number | 85369095 |
| Product range | FG switches with solenoid |
| ETIM class | EC002593 |
Documentation
Technical documentation
Access the latest datasheets, certificates, manuals, CAD files and detailed technical information directly from the manufacturer.
