FG 60AD5D1Z-F20

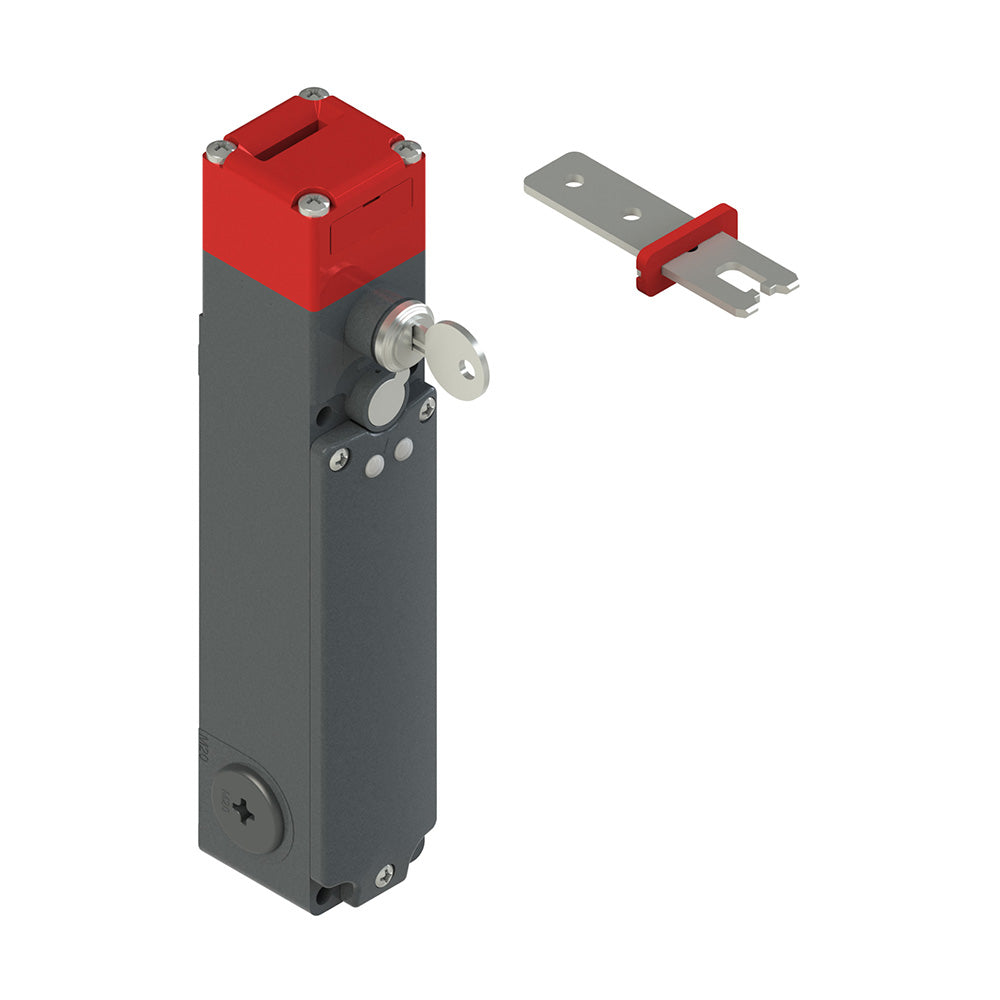

FG series safety switch with separate actuator with lock, Working method: D working method, locked actuator with de-energized solenoid, Protection degree: IP67 according to EN 60529 with cable gland having equal or higher protection degree, Housing: Metal housing, three M20x1,5 cable entries, Contact block: 1NO+1NC moved by actuator and 1NO+1NC moved by solenoid, Head: Rotating head with lock auxiliary release device, Power: 120 Vac/dc, LED: Without LED, Actuator: Complete with straight actuator VF KEYF20, Positive opening: Yes.

Technical specifications

Documentation

• English catalogue / technical documentation 1
