Pizzato
Inventarna šifra proizvoda (SKU):CS AM14F1XU-P6
CS AM14F1XU-P6
CS AM14F1XU-P6
Availability: Ships in 2–3 weeks
Učitavanje dostupnosti preuzimanje nije moguće

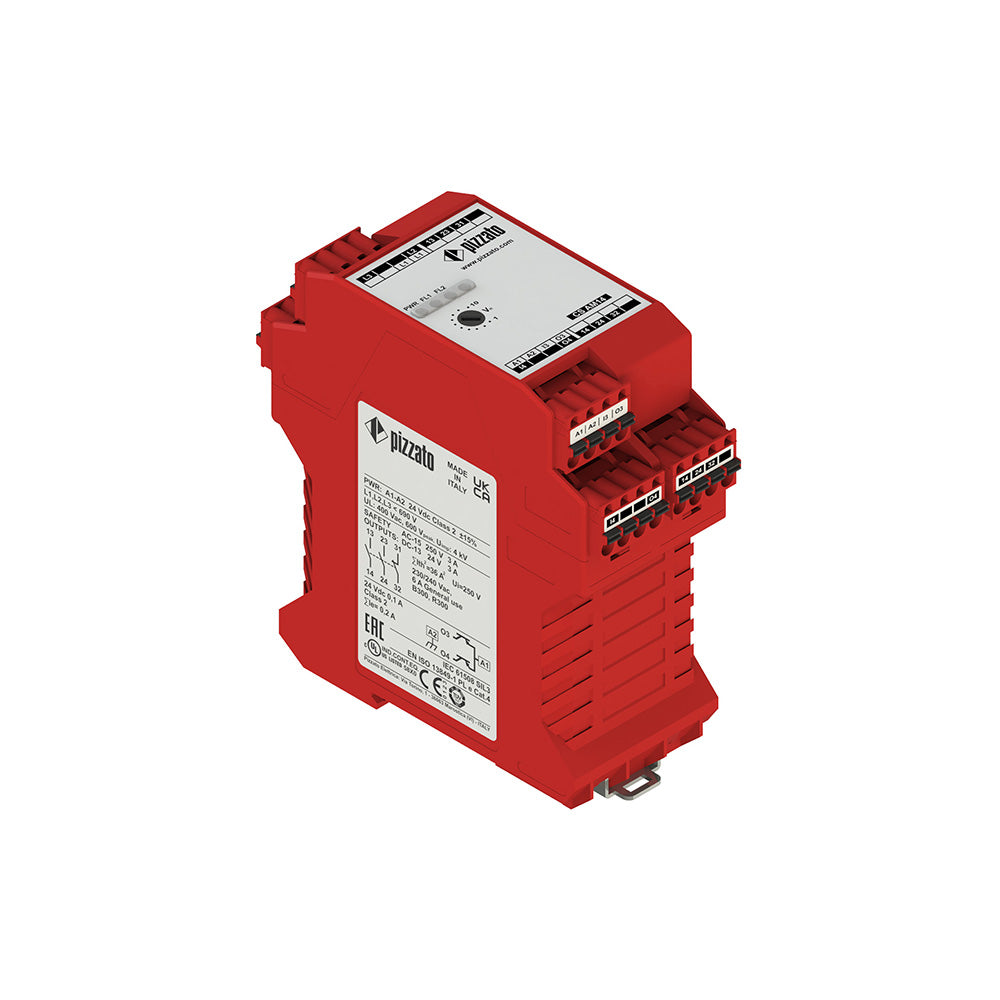

CS AM series safety module, motor standstill detection, Function: Module for motor standstill monitoring, up to Cat. 4, SIL 3, PL e, Output contacts: 2 NO safety contacts, 1 NC contact, Communication port: Not programmable, Connection type: Connector with spring terminals, Supply voltage: 24 Vdc, Programme P6: Voltage range 40 mV ? 500 mV, phase simultaneity time on start-up = 3 s, phase simultaneity time on stop = deactivated, safety output delay on = 1,5 s.
Technical specifications
| Manufacturer part number | CS AM14F1XU-P6 |
|---|---|
| EAN | 8018851682872 |
| Minimum order quantity | 1 |
| Weight | 0 g |
| Customs tariff number | 85369095 |
| Product range | CS Safety modules motor monitoring (CS AM1/2/3) |
| ETIM class | EC001449 |
Documentation
Technical documentation
Access the latest datasheets, certificates, manuals, CAD files and detailed technical information directly from the manufacturer.
