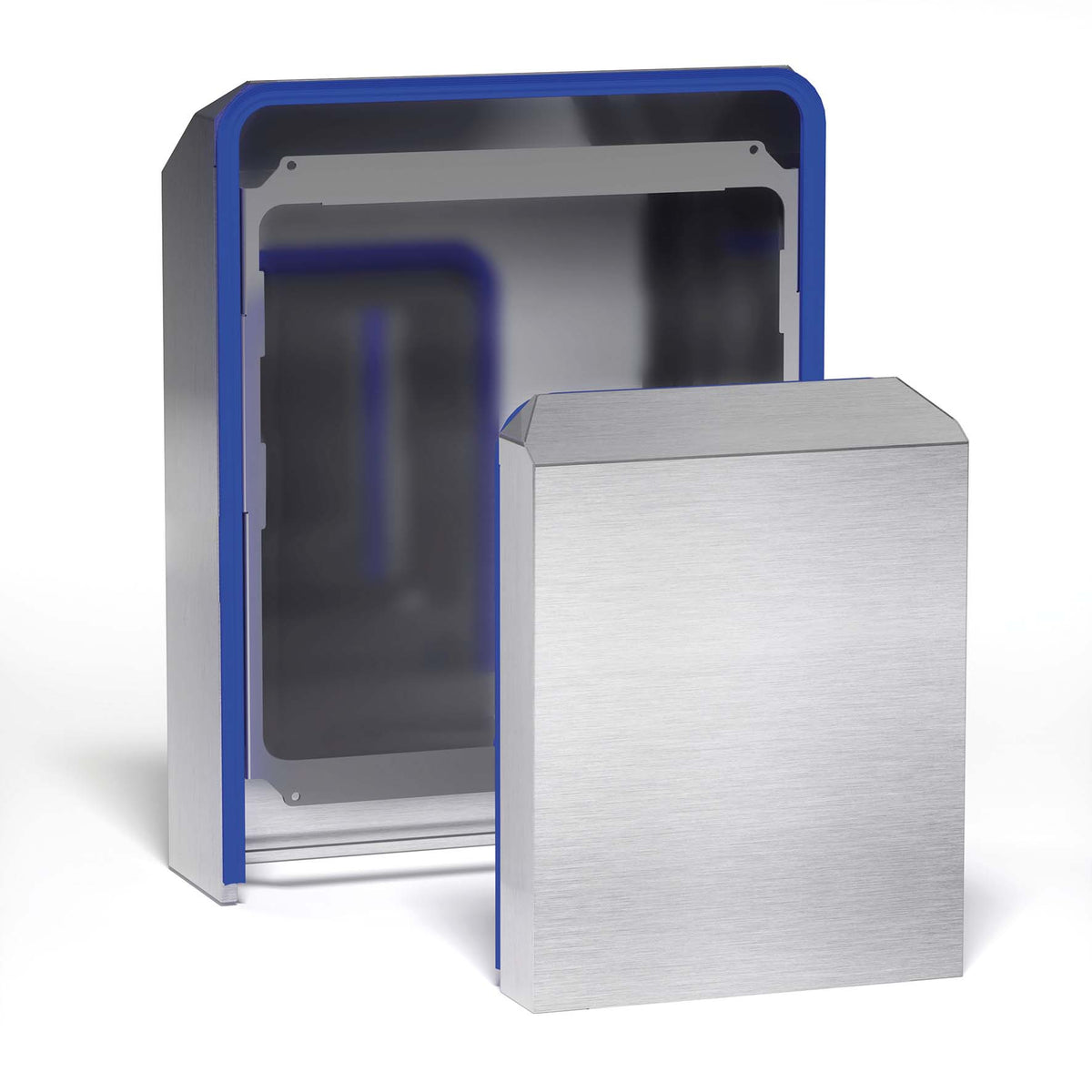

Fandis MRH12S01 – Hose-proof FF12 protection hood in stainless steel
Fandis MRH12S01 – Hose-proof FF12 protection hood in stainless steel
Price on request
Poštarina se obračunava prilikom završetka kupnje.
Stainless steel (AISI 304) cover with FDA-compliant gasket silicone to be applied to exhaust filters and filter fans to protect the internal components of the electrical panel from water jets and the ingress of solid objects, in order to elevate the protection rating to IP56. Ideal for applications with high hygienic standards in the Food & Beverage sector and for outdoors. Also available in powder-coated steel cover.$Patented
Technical specifications
| Manufacturer part number | MRH12S01 |
|---|---|
| Approvals | CE; cURus; cULus; UKCA |
| IP Protection Degree | IP56 |
| Casing Material | Stainless Steel AISI 304 |
| Fixing System | Screws |
| Suitable for filters | FF12 |
| UL Environmental Type Rating | Type 1, 12, 3, 3R, 3X, 4, 4X |
| UL File Number Listed | E500932 |
| UL File Number Recognized Component | E237844 |
