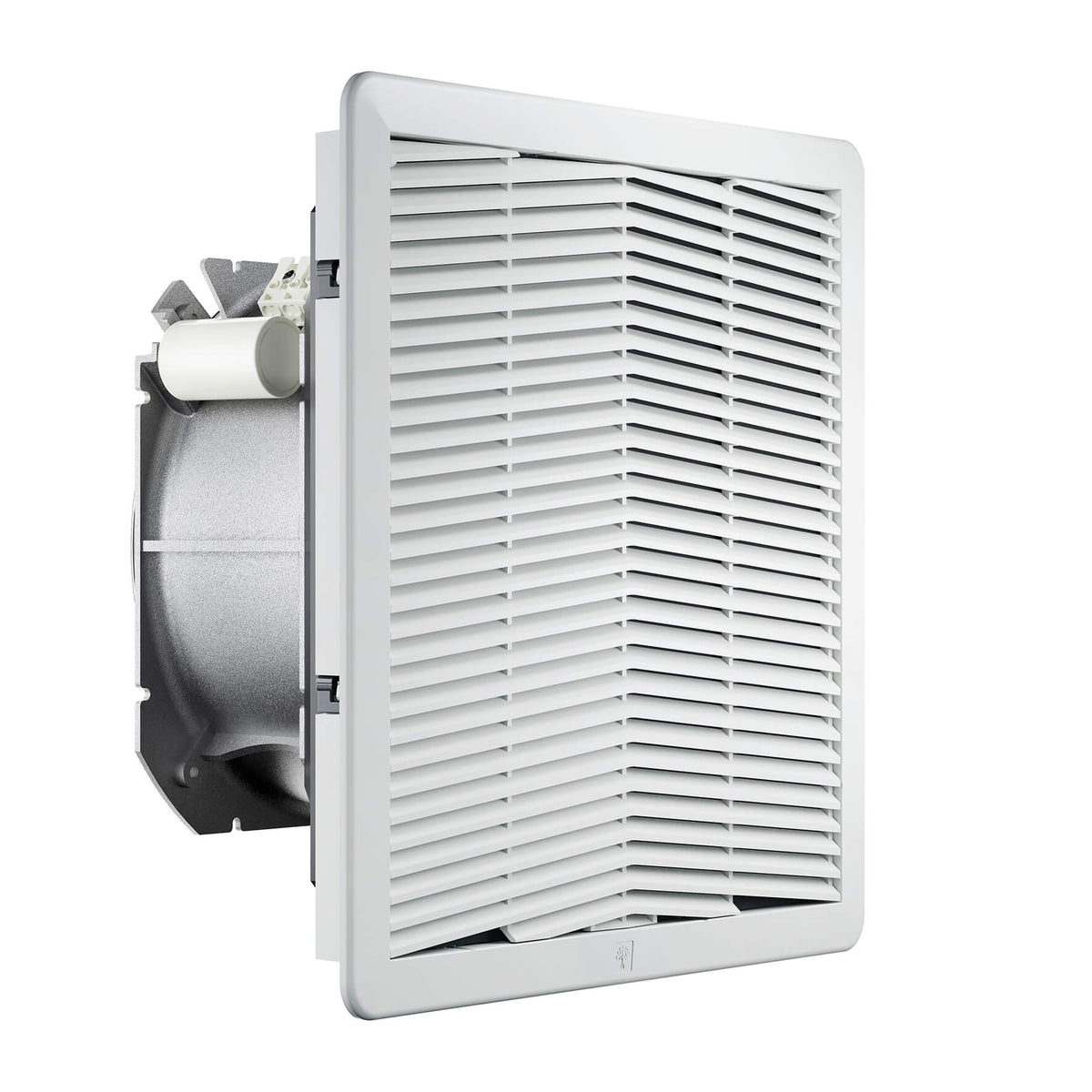

Fandis GF20KU230BE – FAN FILTER RAL 7035

Name: Fandis GF20KU230BE – FAN FILTER RAL 7035
Brand: Fandis
SKU: GF20KU230BE
Availability: InStock

Price on request

Rasprodano

Poštarina se obračunava prilikom završetka kupnje.

Request a price

GF series exhaust filter and filter fans represents a side-mounted cooling solution with filtered ambient air to maintain optimum ventilation inside the electrical cabinets. Characterized by a mounting system with jacks for thick wall application (up to 8mm extensible up to 16mm by cutting the jacks) in both plate and plastic enclosures, and a hinged opening for a filter media replacement in seconds.

Technical specifications

Manufacturer part number	GF20KU230BE
Approvals	CE; UKCA
Appliance Class	I
Frequency	50/60 Hz
Motor Protection	Thermally Protected
Operating Voltage	207-253 V a.c.
Rated Current	0.41/0.45 A
Rated Power	85/101 W
Rated Voltage	230 V a.c.
IP Protection Degree	IP54
Operating Temperature	-10÷50 °C
Storage Temperature	-40÷70 °C
Airflow Direction	Direct
Electrical Connection	Screwless Terminal Block
Fan Noise	60/62 dB(A)
Filter Class	G3 EN 779 ISO coarse 55% ISO 16890
Filter Material	thermo-linked progressive structure synthetic fibre
Life Expectancy	70000 h at 25 °C
RAL Number	7035
Wires Section	0.75-2.5 mm² 20-14 AWG
Mounting Wall Thickness	1-8 mm
Airflow with Exhaust Filter	330/380 m³/h
Max Airflow	470/530 m³/h
Max Static Pressure	140/156 Pa
