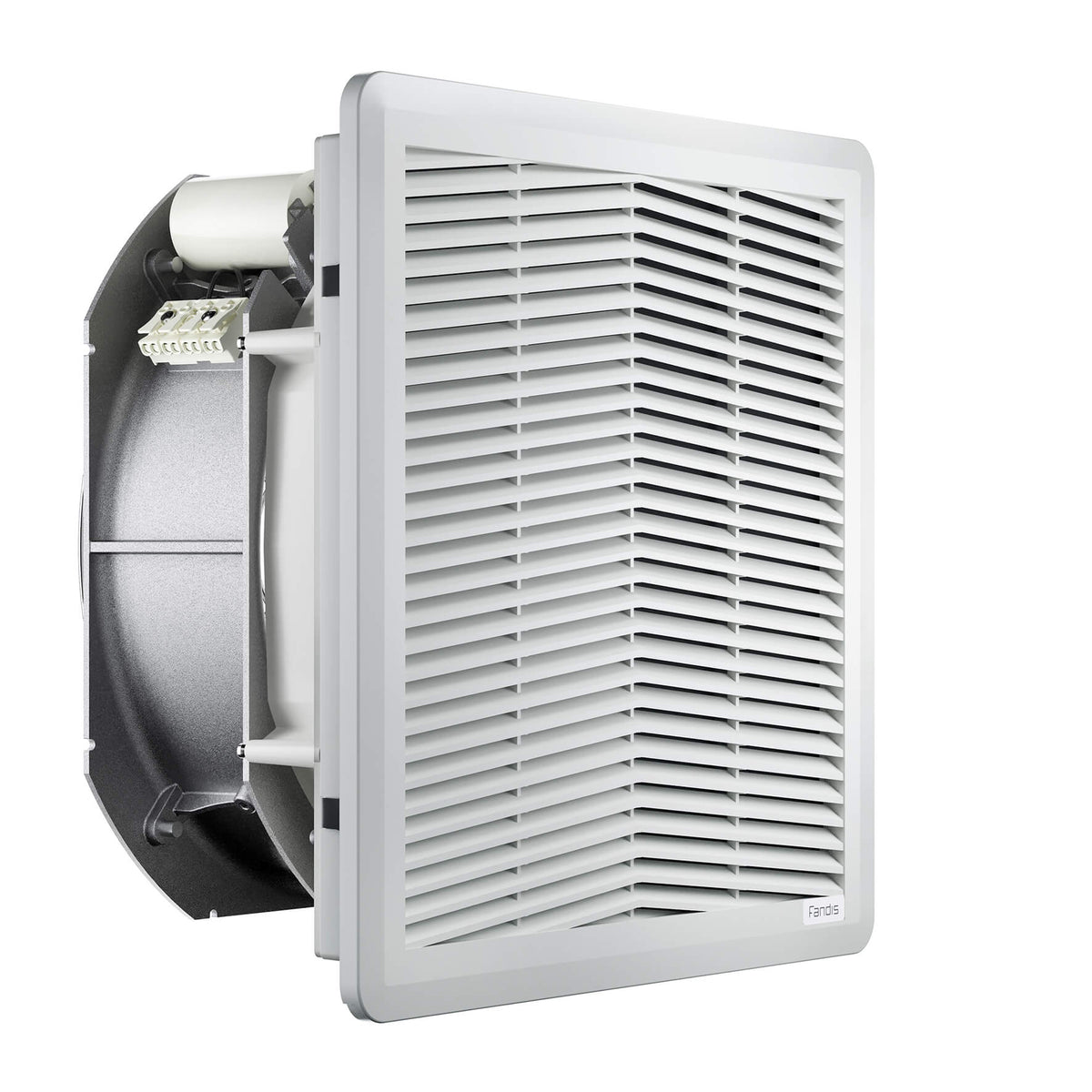

Fandis FF20GA230UEA – FAN FILTER

Name: Fandis FF20GA230UEA – FAN FILTER
Brand: Fandis
SKU: FF20GA230UEA
Availability: InStock

Price on request

Rasprodano

Poštarina se obračunava prilikom završetka kupnje.

Request a price

FF series exhaust filter and filter fans represents a side-mounted cooling solution with filtered ambient air to maintain optimum ventilation inside the electrical cabinets. Screwless connection, fast tool-free mounting system with clip and maintenance friendliness are the main benefits. Available in a wide range of configurations for both indoor and outdoor use.

Technical specifications

Manufacturer part number	FF20GA230UEA
Approvals	CE; UKCA
Appliance Class	I
Frequency	50/60 Hz
Motor Protection	Thermally Protected
Operating Voltage	207-253 V a.c.
Rated Current	0.69/0.86 A
Rated Power	158/198 W
Rated Voltage	230 V a.c.
IP Protection Degree	IP51
Operating Temperature	-25÷60 °C
Storage Temperature	-30÷70 °C
Airflow Direction	Direct
Casing Material	PC/ABS UL94 V-0
Electrical Connection	Screwless Terminal Block
Fan Noise	72/75 dB(A)
Filter Class	G2 EN 779 ISO coarse 30% ISO 16890
Filter Material	thermo-linked progressive structure synthetic fibre
Life Expectancy	57500/70000 h at 25 °C
RAL Number	7035
Spare Parts Filter Media	M20-EU2-01
Wires Section	0.75-2.5 mm² 20-14 AWG
Bearing	Ball Bearing
Mounting Wall Thickness	1.3-3.7 mm
Airflow with Exhaust Filter	610/675 m³/h
Max Airflow	860/960 m³/h
Max Static Pressure	215/215 Pa
