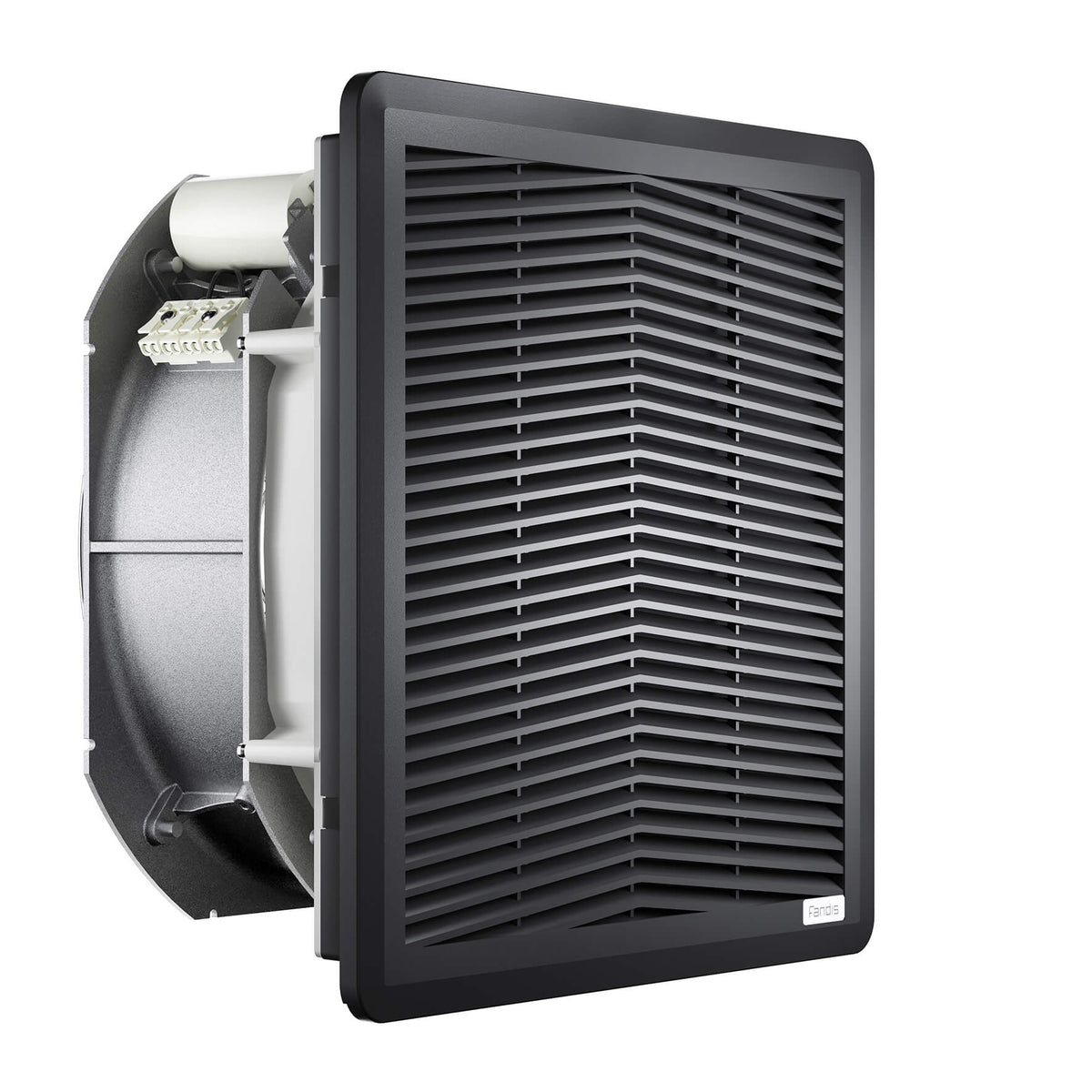

Fandis FF20GA230NE31 – FAN FILTER 230Va.c. RAL 9005

Name: Fandis FF20GA230NE31 – FAN FILTER 230Va.c. RAL 9005
Brand: Fandis
SKU: FF20GA230NE31
Availability: InStock

Price on request

Rasprodano

Poštarina se obračunava prilikom završetka kupnje.

Request a price

FF series exhaust filter and filter fans represents a side-mounted cooling solution with filtered ambient air to maintain optimum ventilation inside the electrical cabinets. Screwless connection, fast tool-free mounting system with clip and maintenance friendliness are the main benefits. Available in a wide range of configurations for both indoor and outdoor use.

Technical specifications

Manufacturer part number	FF20GA230NE31
Approvals	CE; cURus; cULus; UKCA
Appliance Class	I
Frequency	50/60 Hz
Motor Protection	Thermally Protected
Operating Voltage	207-253 V a.c.
Rated Current	0.53/0.69 A
Rated Power	120/158 W
Rated Voltage	230 V a.c.
IP Protection Degree	IP55
Operating Temperature	-10÷55 °C
Storage Temperature	-30÷70 °C
Airflow Direction	Direct
Casing Material	PBT UL94 5VB
Electrical Connection	Screwless Terminal Block
Fan Noise	72/75 dB(A)
Filter Class	G3 EN 779 ISO coarse 55% ISO 16890
Filter Material	thermo-linked progressive structure synthetic fibre
Life Expectancy	57500/70000 h at 25 °C
RAL Number	9005
Spare Parts Filter Media	M20FPF-EU3RM
Wires Section	0.75-2.5 mm² 20-14 AWG
Bearing	Ball Bearing
Mounting Wall Thickness	1.3-3.7 mm
Airflow with Exhaust Filter	420/470 m³/h
Max Airflow	680/765 m³/h
Max Static Pressure	200/210 Pa
UL Environmental Type Rating	Type 3R
UL File Number Listed	E500932
UL File Number Recognized Component	E237844
UL Surrounding Temperature	55 °C
