Fandis FF20A400TUE – FAN FILTER

Name: Fandis FF20A400TUE – FAN FILTER
Brand: Fandis
SKU: FF20A400TUE
Availability: InStock

Price on request

Rasprodano

Poštarina se obračunava prilikom završetka kupnje.

Request a price

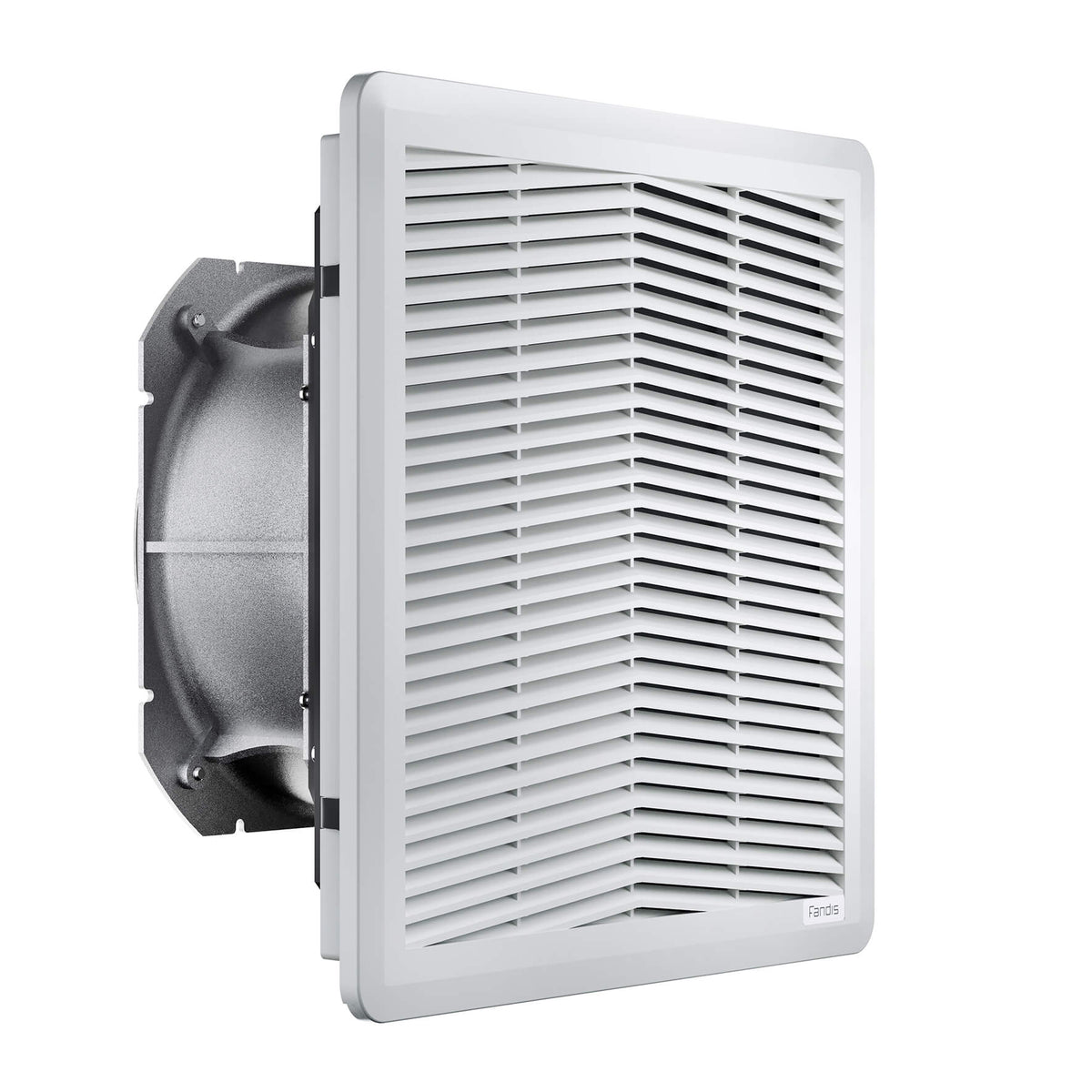

FF series exhaust filter and filter fans represents a side-mounted cooling solution with filtered ambient air to maintain optimum ventilation inside the electrical cabinets. Screwless connection, fast tool-free mounting system with clip and maintenance friendliness are the main benefits. Available in a wide range of configurations for both indoor and outdoor use.

Technical specifications

Manufacturer part number	FF20A400TUE
Approvals	CE; UKCA
Appliance Class	I
Frequency	50/60 Hz
Operating Voltage	360-440 V a.c. 3 ~
Rated Current	0.26/0.23 A
Rated Power	99/124 W
Rated Voltage	400 V a.c. 3 ~
IP Protection Degree	IP54
Operating Temperature	-20÷60 °C
Storage Temperature	-40÷70 °C
Airflow Direction	Direct
Casing Material	PC/ABS UL94 V-0
Electrical Connection	Screwless Terminal Block
Fan Noise	64.1/67.8 dB(A)
Filter Class	G3 EN 779 ISO coarse 55% ISO 16890
Filter Material	thermo-linked progressive structure synthetic fibre
Life Expectancy	70000 h at 25 °C
RAL Number	7035
Spare Parts Filter Media	M20FPF-EU3
Wires Section	0.75-2.5 mm² 20-14 AWG
Bearing	Ball Bearing
Mounting Wall Thickness	1.3-3.7 mm
Airflow with Exhaust Filter	357/410 m³/h
Max Airflow	535/630 m³/h
Max Static Pressure	185/235 Pa
