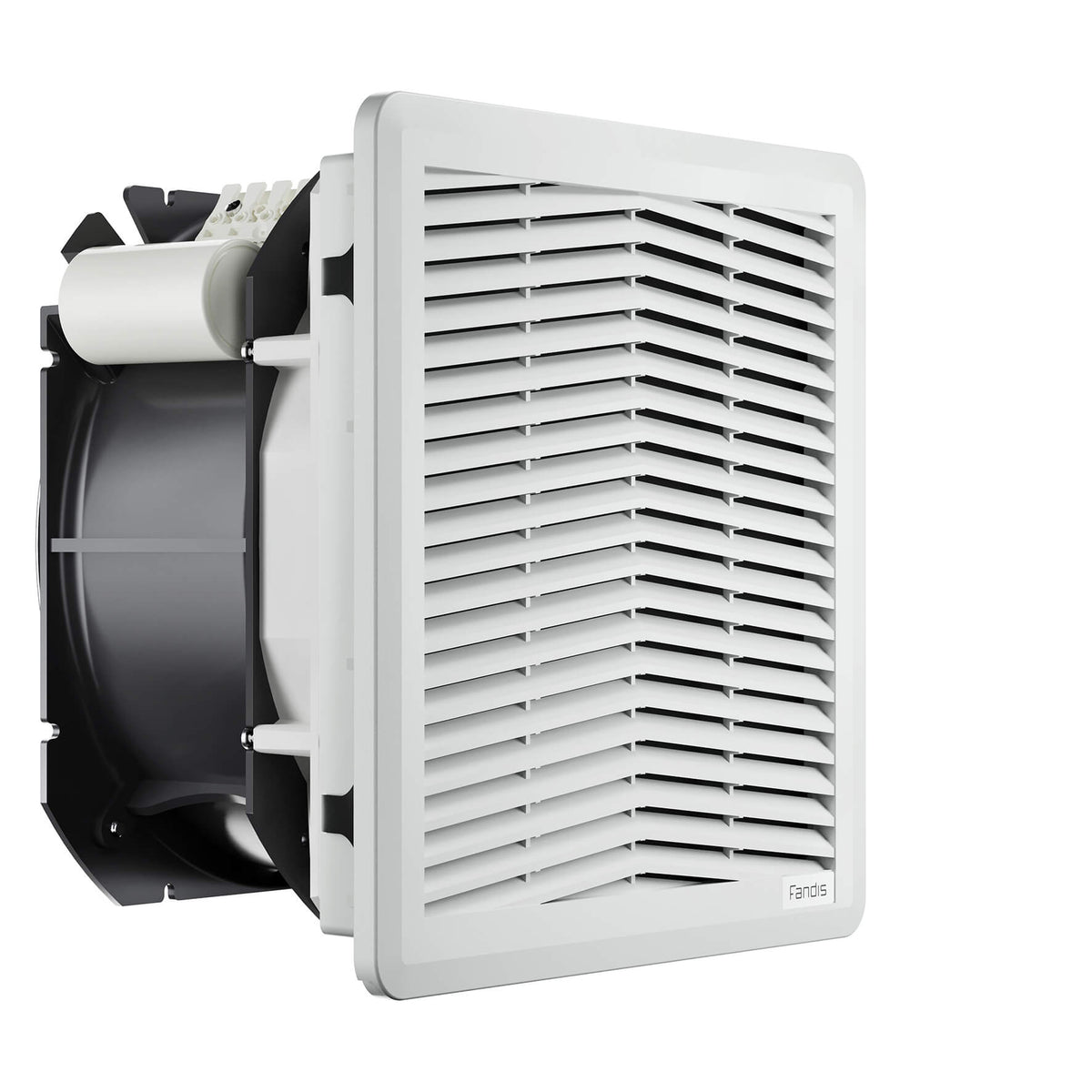

Fandis FF15GA230UJR – FAN FILTER 230Va.c. RAL 7035 REVERSE FLOW

Name: Fandis FF15GA230UJR – FAN FILTER 230Va.c. RAL 7035 REVERSE FLOW
Brand: Fandis
SKU: FF15GA230UJR
Availability: InStock

Price on request

Rasprodano

Poštarina se obračunava prilikom završetka kupnje.

Request a price

FF series exhaust filter and filter fans represents a side-mounted cooling solution with filtered ambient air to maintain optimum ventilation inside the electrical cabinets. Screwless connection, fast tool-free mounting system with clip and maintenance friendliness are the main benefits. Available in a wide range of configurations for both indoor and outdoor use.

Technical specifications

Manufacturer part number	FF15GA230UJR
Approvals	CE; UKCA
Appliance Class	I
Frequency	50/60 Hz
Motor Protection	Thermally Protected
Operating Voltage	207-253 V a.c.
Rated Current	0.40/0.50 A
Rated Power	91/115 W
Rated Voltage	230 V a.c.
IP Protection Degree	IP54
Operating Temperature	-10÷60 °C
Storage Temperature	-40÷70 °C
Airflow Direction	Reverse
Casing Material	PC/ABS UL94 V-0
Electrical Connection	Screwless Terminal Block
Fan Noise	59/61 dB(A)
Filter Class	G3 EN 779 ISO coarse 55% ISO 16890
Filter Material	thermo-linked progressive structure synthetic fibre
Life Expectancy	50000 h at 25 °C
RAL Number	7035
Spare Parts Filter Media	M15FPF-EU3
Wires Section	0.75-2.5 mm² 20-14 AWG
Bearing	Ball Bearing
Mounting Wall Thickness	1.3-3.7 mm
Airflow with Exhaust Filter	280/316 m³/h
Max Airflow	370/423 m³/h
Max Static Pressure	242/246 Pa
