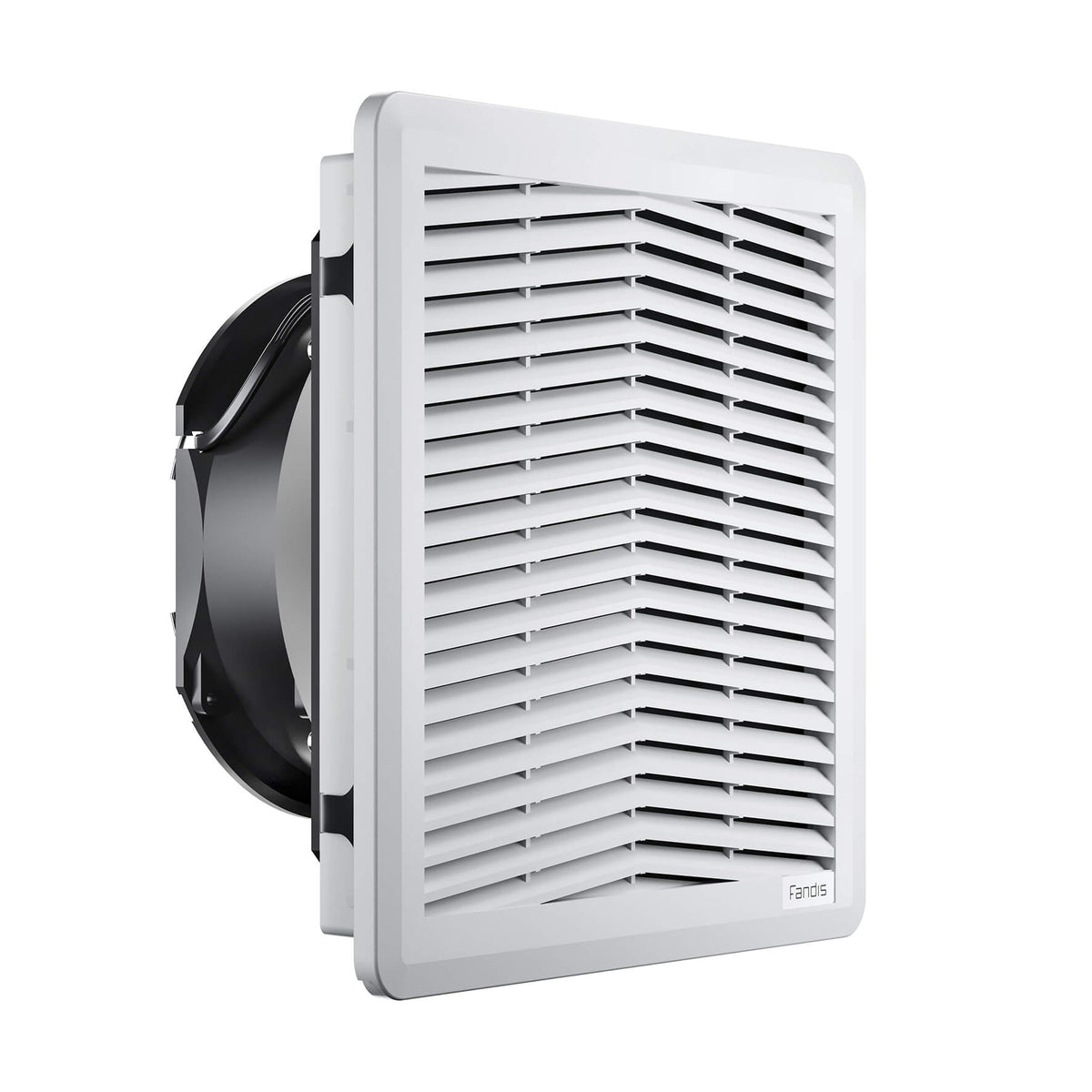

Fandis FF15A230UFRC – FAN FILTER 230Va.c. RAL 7035 REVERSE FLOW EMC

Name: Fandis FF15A230UFRC – FAN FILTER 230Va.c. RAL 7035 REVERSE FLOW EMC
Brand: Fandis
SKU: FF15A230UFRC
Availability: InStock

Price on request

Rasprodano

Poštarina se obračunava prilikom završetka kupnje.

Request a price

FF series exhaust filter and filter fans represents a side-mounted cooling solution with filtered ambient air to maintain optimum ventilation inside the electrical cabinets. Screwless connection, fast tool-free mounting system with clip and maintenance friendliness are the main benefits. Available in a wide range of configurations for both indoor and outdoor use.

Technical specifications

Manufacturer part number	FF15A230UFRC
Approvals	CE; cURus; cULus; cCSAus; UKCA
Frequency	50/60 Hz
Motor Protection	Thermally Protected
Operating Voltage	207-253 V a.c.
Rated Current	0.14/0.16 A
Rated Power	32/36 W
Rated Voltage	230 V a.c.
IP Protection Degree	IP54
Operating Temperature	-30÷55 °C
Airflow Direction	Reverse
Casing Material	PC/ABS UL94 V-0
Electrical Connection	Screwless Terminal Block
Fan Noise	50/55 dB(A)
Filter Class	G3 EN 779 ISO coarse 55% ISO 16890
Filter Material	thermo-linked progressive structure synthetic fibre
Life Expectancy	80000 h at 25 °C
RAL Number	7035
Spare Parts Filter Media	M15FPF-EU3
Wires Section	0.75-2.5 mm² 20-14 AWG
Bearing	Ball Bearing
Airflow with Exhaust Filter	160/195 m³/h
Max Airflow	240/285 m³/h
Max Static Pressure	164/210 Pa
UL Environmental Type Rating	Type 1, 12
UL File Number Listed	E500932
UL File Number Recognized Component	E237844
