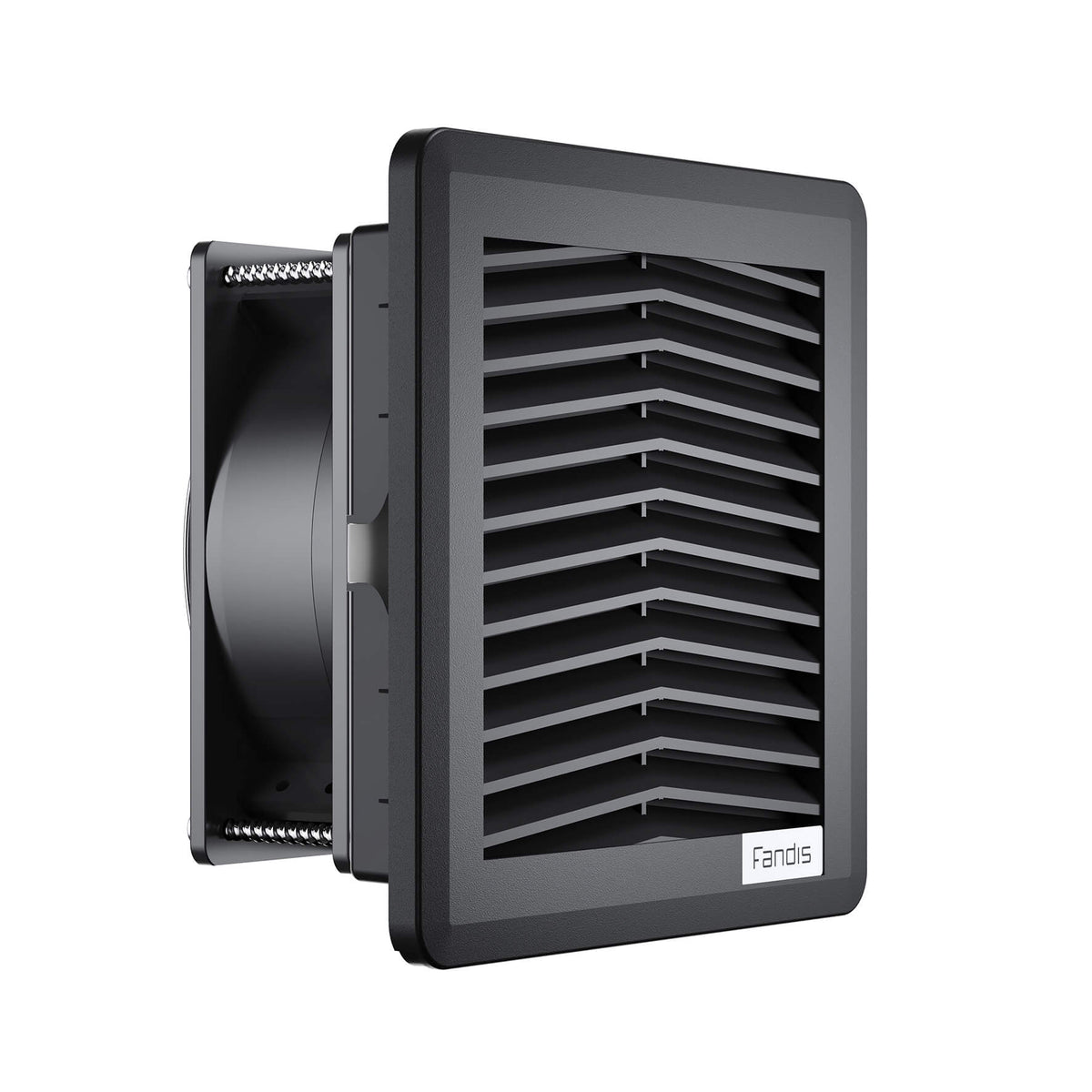

Fandis FF12A230NF53 – FAN FILTER IP55 230Va.c. RAL 9005 IP55

Name: Fandis FF12A230NF53 – FAN FILTER IP55 230Va.c. RAL 9005 IP55
Brand: Fandis
SKU: FF12A230NF53
Availability: InStock

Price on request

Rasprodano

Poštarina se obračunava prilikom završetka kupnje.

Request a price

FF series exhaust filter and filter fans represents a side-mounted cooling solution with filtered ambient air to maintain optimum ventilation inside the electrical cabinets. Screwless connection, fast tool-free mounting system with clip and maintenance friendliness are the main benefits. Available in a wide range of configurations for both indoor and outdoor use.

Technical specifications

Manufacturer part number	FF12A230NF53
Approvals	CE; cURus; cULus; UKCA
Appliance Class	I
Frequency	50/60 Hz
Motor Protection	Impedance Protected
Operating Voltage	216-244 V a.c.
Rated Current	0.11/0.1 A
Rated Power	18/17 W
Rated Voltage	230 V a.c.
IP Protection Degree	IP55
Operating Temperature	-10÷55 °C
Storage Temperature	-40÷70 °C
Airflow Direction	Direct
Casing Material	PBT UL94 5VB
Electrical Connection	Screwless Terminal Block
Fan Noise	49/49 dB(A)
Filter Class	G4 EN 779 ISO coarse 75% ISO 16890
Filter Material	thermo-linked progressive structure synthetic fibre
Life Expectancy	57000 h at 25 °C
RAL Number	9005
Spare Parts Filter Media	M12FPF
Wires Section	0.75-2.5 mm² 20-14 AWG
Bearing	Ball Bearing
Mounting Wall Thickness	1.3-3.2 mm
Airflow with Exhaust Filter	23/26 m³/h
Max Airflow	33/39 m³/h
Max Static Pressure	49/51 Pa
UL Environmental Type Rating	Type 3R
UL File Number Listed	E500932
UL File Number Recognized Component	E237844
UL Surrounding Temperature	55 °C
