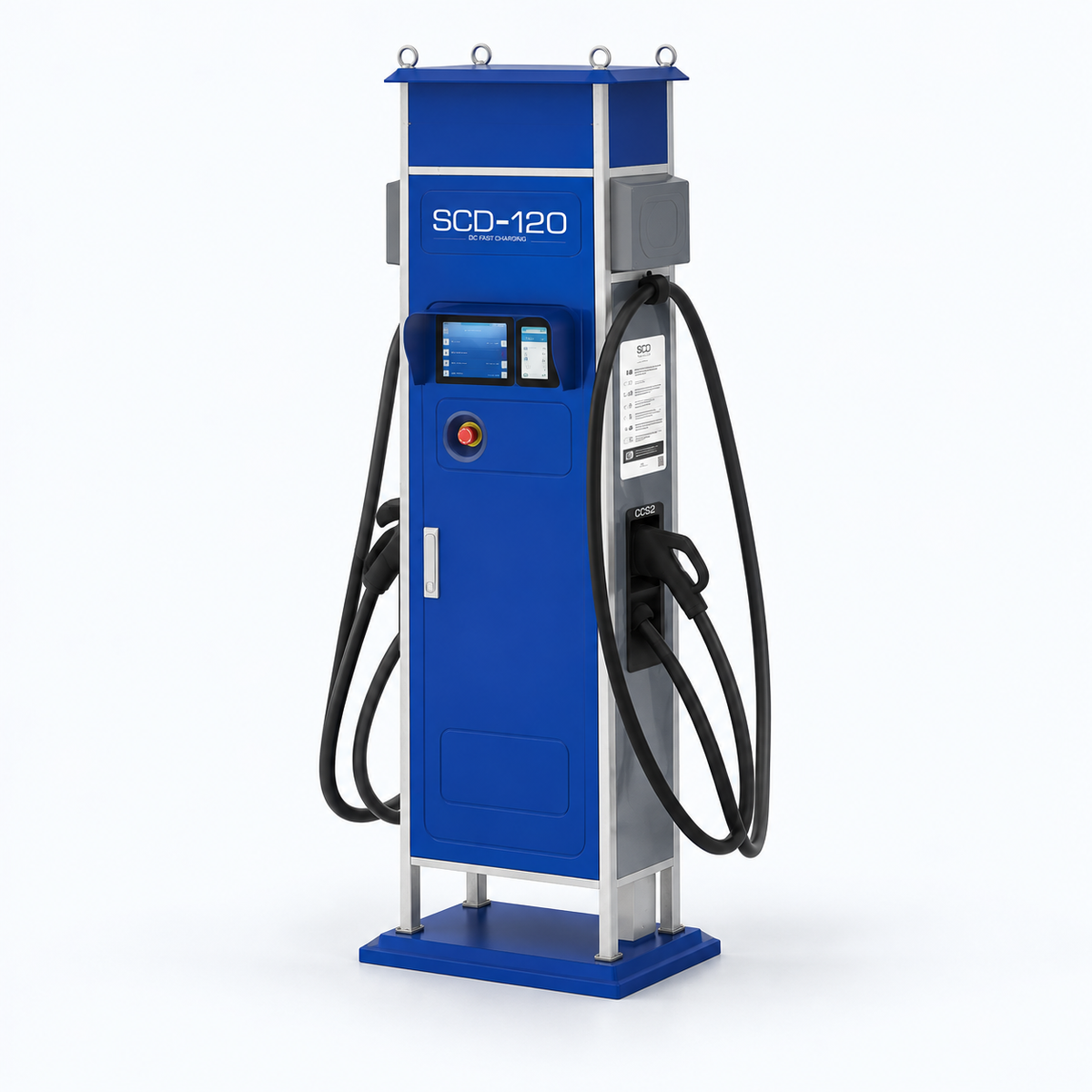

4S4 POWER SCD DC Fast Charging Station – 60–120 kW Class

Price on request

Rasprodano

Poštarina se obračunava prilikom završetka kupnje.

Power 2 × 60 kW 80 kW 120 kW

Connector configuration 2 × GB/T DC CCS2 + GB/T DC 2 × CCS2

4S4 POWER SCD DC fast charging station family covering 2 × 60 kW, 80 kW and 120 kW configurations with multiple connector combinations.

Power options	2 × 60 kW, 80 kW, 120 kW
Cable current	150 A for 2 × 60 kW; 200 A for 80 kW; 250 A for 120 kW
Connector configurations	2 × GB/T DC, CCS2 + GB/T DC, or 2 × CCS2
Protection	IP54
Impact resistance	IK10
Operating temperature	-20 to +45 °C
Overall dimensions	270 × 670 × 2020 mm
Cable length	4 m; manufacturer states it can be customized
Cable rating	1000 V
Optional on request	RFID, Wi-Fi, Bluetooth and payment terminal
