4S4 POWER SCD DC Fast Charging Station – 120–240 kW Class

Price on request

Rasprodano

Poštarina se obračunava prilikom završetka kupnje.

Power 2 × 120 kW 180 kW 240 kW

Connector configuration 2 × GB/T DC CCS2 + GB/T DC 2 × CCS2

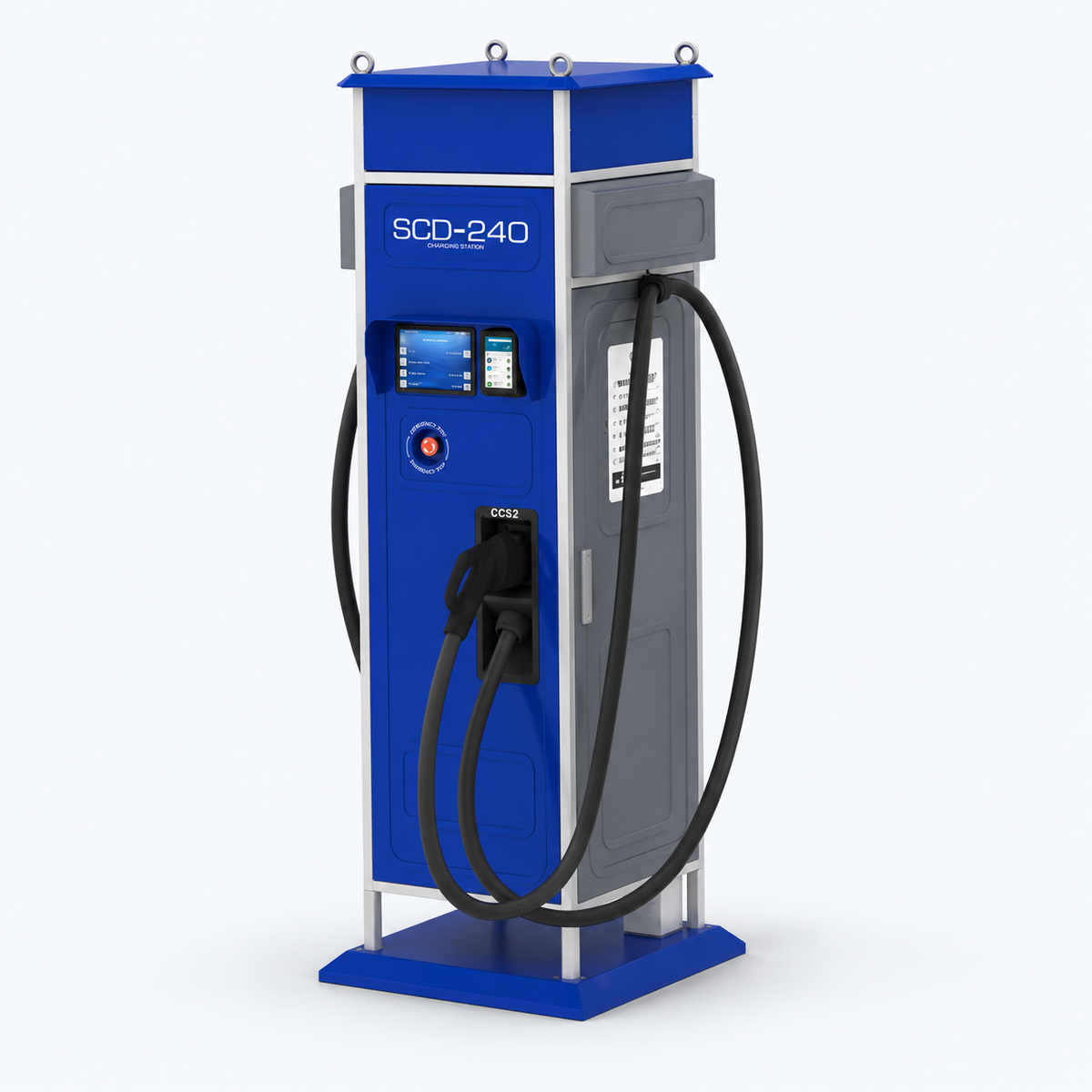

4S4 POWER SCD DC fast charging station family covering dual 120 kW, 180 kW and 240 kW configurations.

Power options	2 × 120 kW, 180 kW, 240 kW
Cable current	250 A
Connector configurations	2 × GB/T DC, CCS2 + GB/T DC, or 2 × CCS2
Protection	IP54
Impact resistance	IK10
Operating temperature	-20 to +45 °C
Overall dimensions	550 × 670 × 2020 mm
Cable length	4 m; manufacturer states it can be customized
Cable rating	1000 V
Optional on request	RFID, Wi-Fi, Bluetooth and payment terminal
