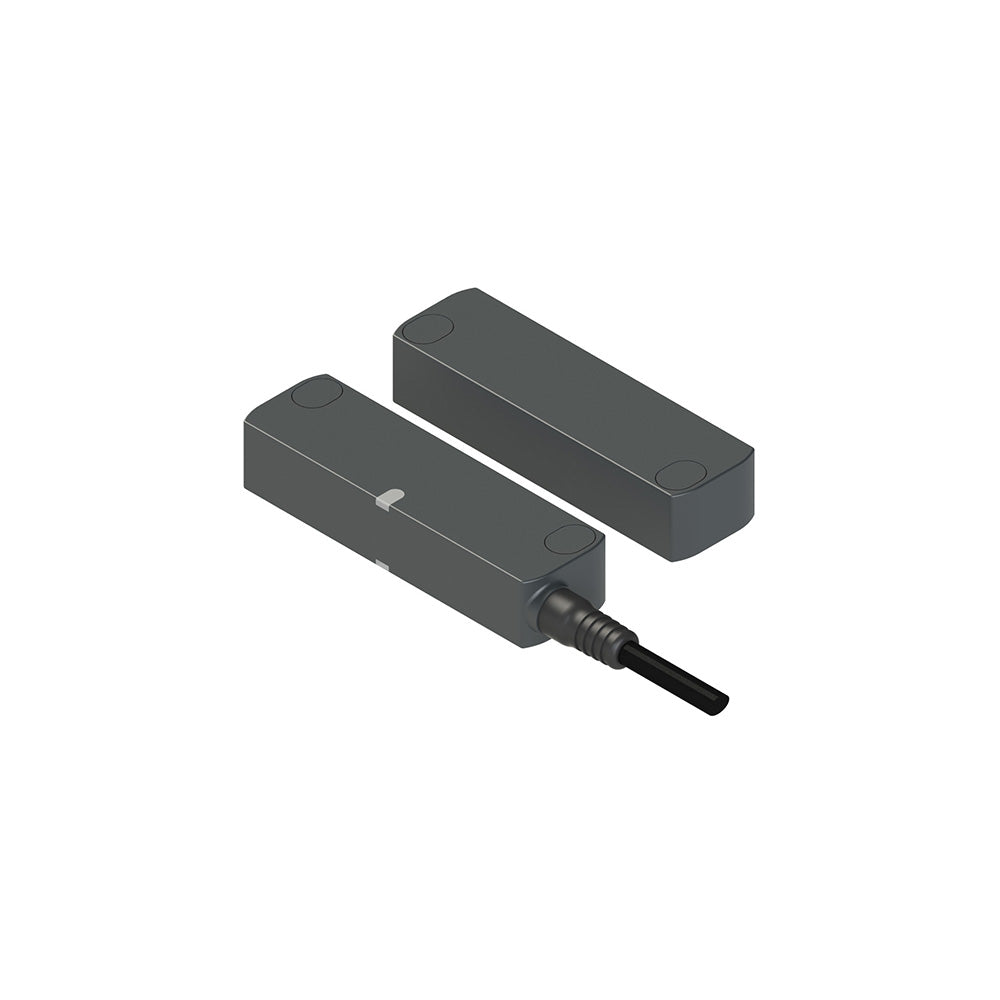

ST HE210N10-H0TF

ST H series safety sensor, Housing: Technopolymer housing, ST H series, with permanent magnet, Inputs and outputs : 2 safety outputs OS1-OS2, ; 1 signalling output O3, Power: 24 Vdc, Type of cable or connector: PVC cable, Actuator coding level: Low coding level, Actuator actuation distance: Actuation distance 11 mm, Permanent magnet holding force: With magnet, holding force 40 N (F), Actuator design: Dimensions 90x25x18 mm, lateral fixing (H), Ambient temperature: From -25 to +70 °C, Protection degree: IP67 according to EN 60529 and IP69K according to ISO 20653.

Technical specifications

Documentation

• English catalogue / technical documentation 1
