Pizzato
SKU:ST HD310N10-H0T
ST HD310N10-H0T
ST HD310N10-H0T
Availability: Ships in 2–3 weeks
Verfügbarkeit für Abholungen konnte nicht geladen werden

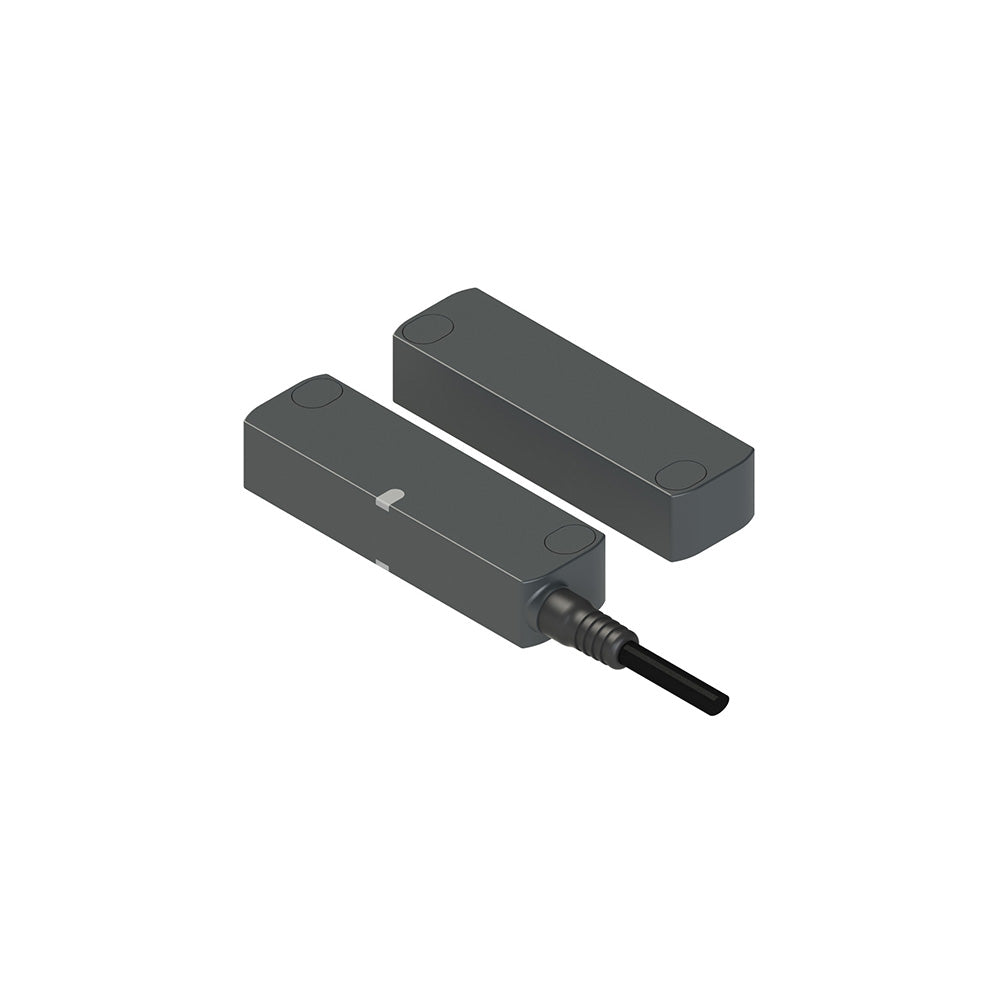

ST H series safety sensor, Housing: Technopolymer housing, ST H series, Inputs and outputs : 2 safety inputs IS1-IS2, ; 2 safety outputs OS1-OS2, ; 1 signalling output O3, Power: 24 Vdc, Type of cable or connector: PVC cable, Actuator coding level: Low coding level, Actuator actuation distance: Actuation distance 11 mm, Permanent magnet holding force: Without magnet, Actuator design: Dimensions 90x25x18 mm, lateral fixing (H), Ambient temperature: From -25 to +70 °C, Protection degree: IP67 according to EN 60529 and IP69K according to ISO 20653.
Technical specifications
| Manufacturer part number | ST HD310N10-H0T |
|---|---|
| EAN | 8018851569319 |
| Minimum order quantity | 1 |
| Weight | 575 g |
| Customs tariff number | 85369095 |
| Product range | ST H - SM H RFID sensors |
| ETIM class | EC002544 |
Documentation
Technical documentation
Access the latest datasheets, certificates, manuals, CAD files and detailed technical information directly from the manufacturer.
