Pizzato
SKU:NB B110AB-DN2W5
NB B110AB-DN2W5
NB B110AB-DN2W5
Availability: Ships in 2–3 weeks
Verfügbarkeit für Abholungen konnte nicht geladen werden

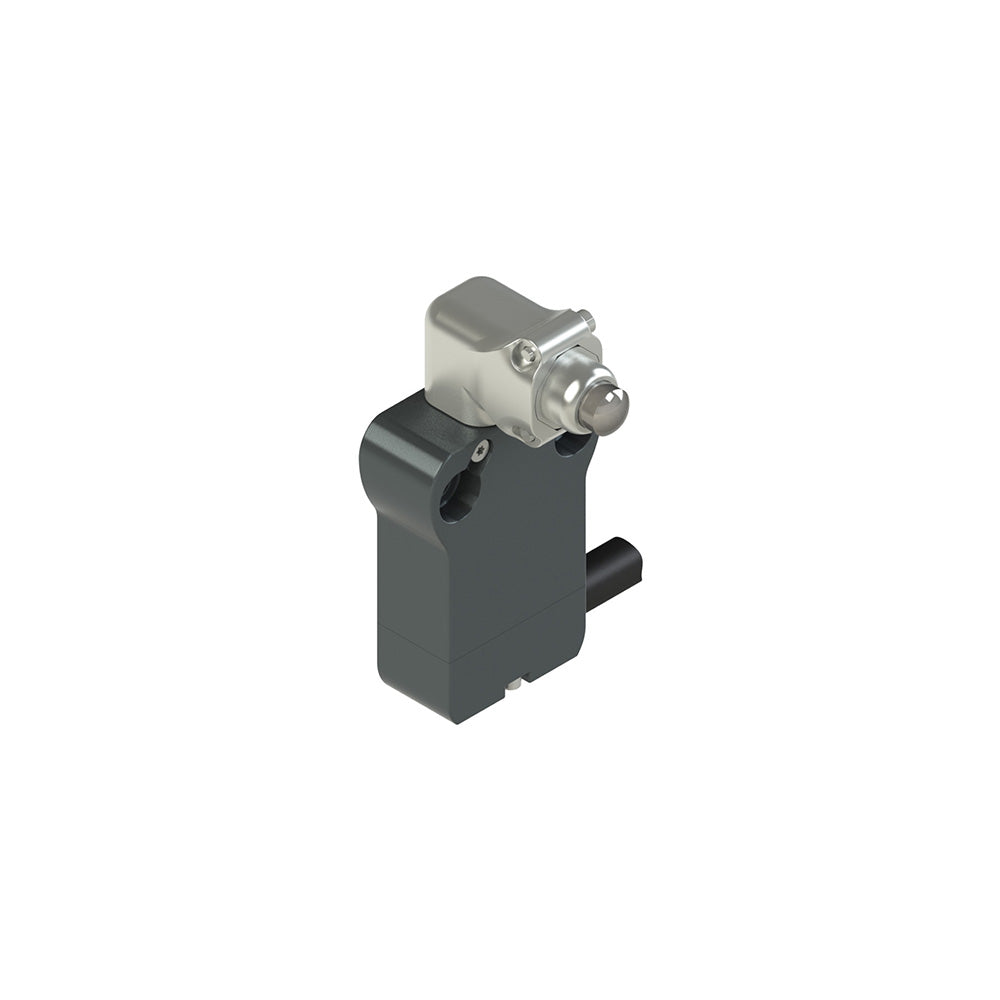

Modular prewired switch with plunger, Protection degree: IP67 according to EN 60529 and IP69K according to ISO 20653, Housing: Metal housing, 25 mm fixing points, Contact block: 1NO+1NC snap action (B11), Head: Plunger - with 90? transmission block, Kind of connection: Metal connector 1NO+1NC, Cable: PVC 5x0,75 mm?, lenght 2 m, 5 wires, Positive opening: Yes.
Technical specifications
| Manufacturer part number | NB B110AB-DN2W5 |
|---|---|
| EAN | 8018851154041 |
| Minimum order quantity | 1 |
| Weight | 336 g |
| Customs tariff number | 85369095 |
| Product range | NA - NB |
| ETIM class | EC000030 |
