Pizzato
SKU:NA G122LB-DN2
NA G122LB-DN2
NA G122LB-DN2
Availability: Ships in 2–3 weeks
Verfügbarkeit für Abholungen konnte nicht geladen werden

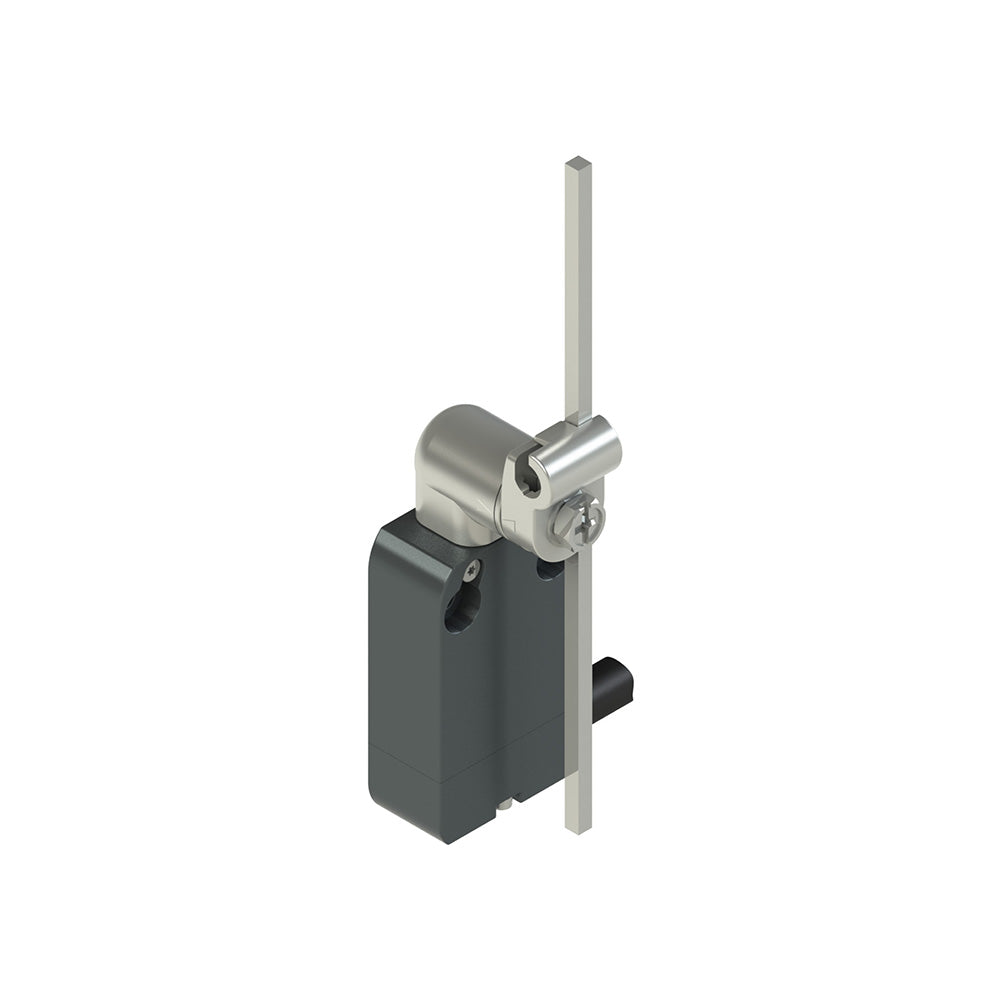

Modular prewired switch with metal revolving lever with adjustable square stainless steel rod 3x3x125, Protection degree: IP67 according to EN 60529 and IP69K according to ISO 20653, Housing: Metal housing, 20 mm fixing points, Contact block: 1NO+2NC slow action (G12), Head: Metal head for actuators with revolving lever, Kind of connection: Metal connector 1NO+2NC, Cable: PVC 7x0.5 mm?, lenght 2 m, 7 wires.
Technical specifications
| Manufacturer part number | NA G122LB-DN2 |
|---|---|
| EAN | 8018851184062 |
| Minimum order quantity | 1 |
| Weight | 0 g |
| Customs tariff number | 85369095 |
| Product range | NA - NB |
| ETIM class | EC000030 |
