Pizzato
SKU:NA G022KB-DN2
NA G022KB-DN2
NA G022KB-DN2
Availability: Ships in 2–3 weeks
Verfügbarkeit für Abholungen konnte nicht geladen werden

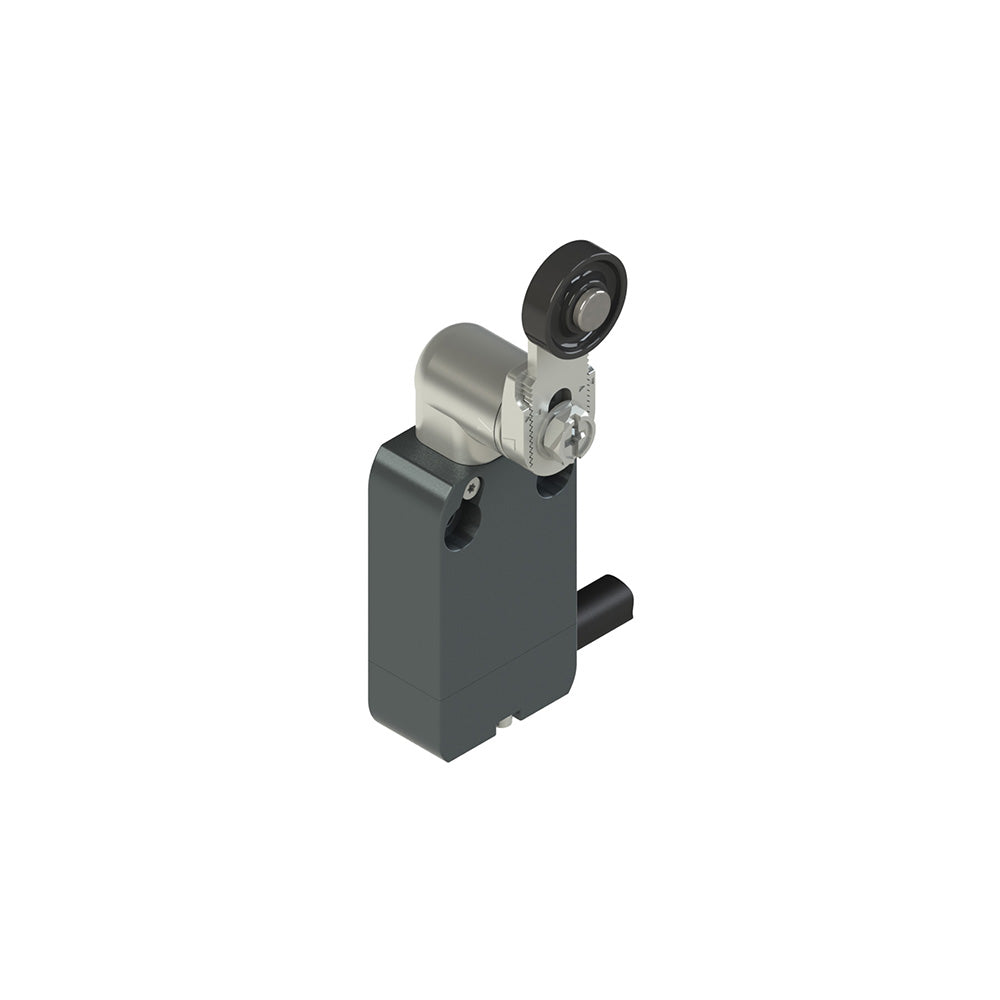

Modular prewired switch with adjustable straight metal revolving lever roller, Protection degree: IP67 according to EN 60529 and IP69K according to ISO 20653, Housing: Metal housing, 20 mm fixing points, Contact block: 2NC slow action (G02), Head: Metal head for actuators with revolving lever, Kind of connection: Metal connector 2NC, Cable: PVC 5x0,75 mm?, lenght 2 m, 5 wires, Positive opening: Yes.
Technical specifications
| Manufacturer part number | NA G022KB-DN2 |
|---|---|
| EAN | 8018851183515 |
| Minimum order quantity | 1 |
| Weight | 345.7 g |
| Customs tariff number | 85369095 |
| Product range | NA - NB |
| ETIM class | EC000030 |
Documentation
Technical documentation
Access the latest datasheets, certificates, manuals, CAD files and detailed technical information directly from the manufacturer.
